High Chrome White Iron: How Microstructure and Heat Treatment Control Wear Resistance

September 10, 2026

Part 1: The metallurgy behind ASTM A532 high-chromium white cast irons

In high-wear environments, hardness is king, and high-chrome white irons stand out for their peak hardness. However, peak hardness does not automatically mean maximum wear life.

Abrasion resistance comes from very hard chromium-rich carbides supported by a hardened matrix, but the same microstructure reduces toughness. The engineering target is therefore a structure matched to both the abrasion and impact conditions the part will see in service.

Unicast's UI alloy series consists of modified high-chrome white irons used for wear parts in demanding abrasive environments, including secondary crushing and comminution circuits processing highly abrasive materials. Unicast’s alloy compositions are based on ASTM A532, which covers abrasion-resistant white cast irons used in mining, milling, earth-handling and manufacturing applications. In high-chromium grades, alloy chemistry and heat treatment are used to control carbide structure and matrix condition for abrasive service.

What makes high-chrome white iron wear resistant?

Cast iron is a broad family of iron alloys containing more than 2 wt.% carbon. In high-chrome white iron, substantial chromium additions promote the formation of chromium-rich carbides during solidification and subsequent thermal processing. Those carbides reinforce the casting and provide much of the alloy's abrasion resistance.

Carbides are often undesirable in steels and irons when ductility and toughness are the main requirements. In high-chrome white iron, however, chromium-rich carbides are intentionally developed because they are far harder than the surrounding matrix. Their hardness is approximately 1500-1800 HV, while the hardened matrix can reach a peak of approximately 690-800 HV.

This difference matters in abrasive service. The harder carbide phase resists cutting and material removal, while the surrounding matrix supports the carbide structure. Wear performance therefore depends on both phases: the carbides themselves and the condition of the matrix around them.

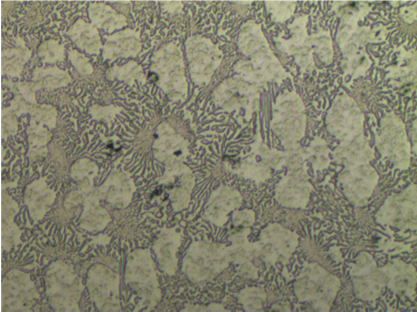

Figure 1. Quenched-and-tempered ASTM A532 Class II B high-chrome white iron microstructure, showing the nodular martensitic matrix and carbide phases.

How composition changes the high-chrome white iron microstructure

High-chrome white iron does not have one fixed microstructure. The balance of retained austenite, martensite and carbides changes with alloy composition, casting section and heat treatment. For severe abrasive wear, a predominantly martensitic matrix is generally desirable because it gives the carbide phase a hard supporting structure. The appropriate balance still depends on the impact the component must tolerate.

As-cast high-chromium white iron can contain retained austenite alongside martensite and carbides. When a harder matrix is required, destabilization heat treatment makes the austenite less stable so more of it can transform to martensite during cooling. In ASTM A532 Class II and III alloys, carbon and molybdenum are two important composition variables that influence this response.

Carbon: hardness, carbide volume and toughness

Carbon affects both the carbide phase and the matrix. It is required to form the chromium-rich carbides that provide the alloy's hardest constituents, and the carbon remaining in austenite influences how that matrix transforms during cooling.

Increasing carbon can increase carbide volume, but the relationship with final hardness is not linear. If too much carbon remains in austenite, that austenite becomes more stable and more may be retained after cooling, which can reduce bulk hardness. At lower carbon levels, carbide volume and martensitic hardness can also fall. The target is therefore an application-specific balance among carbide fraction, matrix transformation, abrasion resistance and toughness, not simply the highest possible carbon content.

Molybdenum: hardenability in thicker castings

Molybdenum is used as a hardenability aid and pearlite suppressor. Its role becomes especially important in thicker cast sections, where the interior cools more slowly than the surface. By delaying pearlite formation, molybdenum helps the intended hard matrix develop more consistently through the section. Composition establishes the casting's heat-treatment response; the final properties depend on the microstructure produced after cooling and tempering.

How heat treatment develops a martensitic wear-resistant structure

The heat-treatment sequence shown in Figure 2 has three main stages: austenitizing or destabilization, forced-air cooling and tempering. The temperatures shown are illustrative rather than universal; the required cycle depends on alloy class, chemistry and casting section.

Figure 2. Illustrative high-chrome white iron heat-treatment sequence

1. Austenitizing/destabilization

In Figure 2, the casting is heated to approximately 950- 1010 °C (1750- 1850 °F). That range is illustrative and should not be treated as universal across ASTM A532 Class II and III alloys; the required destabilization temperature depends on composition. During destabilization, secondary chromium-rich carbides precipitate from the austenitic matrix. This lowers the carbon and chromium content of the remaining austenite, makes it less stable and promotes martensitic transformation during subsequent cooling.

2. Forced-air cooling

High-chrome white irons do not necessarily require a liquid quench. In the sequence described here, forced air cools the casting quickly through the temperature range where pearlite could form, below approximately 550 °C (1022 °F). Martensite forms later, at substantially lower temperatures during continued cooling, with the exact transformation range depending on alloy composition.

Once the casting has passed the pearlite-forming range, cooling can be moderated to reduce the risk of stress cracking and warping as it approaches room temperature. The resulting martensitic condition is very hard but also relatively brittle, which is why tempering follows.

3. Tempering

Tempering reduces internal stress and martensitic brittleness while preserving the high hardness needed for abrasive service. Figure 2 illustrates a low-temperature range of approximately 200-250 C (400-480 F); the exact temperature and time depend on alloy composition, section thickness and target properties. A typical tempering duration is approximately 2-4 hours.

Why maximum hardness is not always maximum wear resistance

Peak hardness can be counterproductive when brittleness promotes spalling or localized fracture of the wear surface. Low-temperature tempering may slightly reduce hardness while improving resistance to that damage, allowing the carbide-rich wear surface to remain intact longer. Hardness is therefore an important property, but not a stand-alone predictor of service life.

Figure 3. Conceptual relationship between wear resistance and impact strength as tempering time and temperature increase.

What this means for wear-part selection

High-chrome white iron should be specified as a wear system rather than by a single hardness number. Engineers need to consider abrasion severity, impact loading, casting section, alloy chemistry and heat treatment together. ASTM class or nominal chemistry alone does not define final service behaviour: carbon affects carbide fraction and austenite stability, molybdenum affects hardenability, and heat treatment determines the final phase balance.

Key takeaways

• High-chrome white iron gets its abrasion resistance from very hard chromium-rich carbides supported by a hardened matrix.
• Carbon affects carbide fraction and austenite stability; more carbon is not automatically better because excessive retained austenite can reduce bulk hardness.
• Molybdenum improves hardenability and helps suppress pearlite, which can be important in thicker cast sections.
• Destabilization precipitates secondary carbides and prepares the austenitic matrix to transform; forced-air cooling suppresses pearlite, and martensite forms later during continued cooling.
• Peak hardness does not automatically produce peak wear life because excessive brittleness can increase spalling.

Part 2: Applications and Limitations

Part 1 establishes how composition, carbide formation and heat treatment control the final high-chrome white iron microstructure. Part 2 will focus on where that material system performs well in service, where impact limits its use, and how those trade-offs affect wear-part selection.

References

1. Keough, J.R. and Hayrynen, K.L. “Heat Treatment of High-Alloy White Cast Irons.” ASM Handbook, Volume 1A: Cast Iron Science and Technology, edited by D.M. Stefanescu, ASM International, 2017, pp. 275–283.
   View source at ASM Digital Library
2. ASTM International. ASTM A532/A532M-10(2023): Standard Specification for Abrasion-Resistant Cast Irons. ASTM International, 2023.
   View the ASTM A532/A532M standard
