Cast Apron Feeder Pans: Design Advantages That Extend Service Life

October 26, 2026

In bulk material handling systems, an apron feeder pan is responsible for more than just material transport. It must withstand impact, resist bending, and protect its mounting connections. Its service life depends on how these demands are addressed together.

Casting allows reinforcement, protective geometry and wear-resistant material selection to be built into the pan. Unicast’s field observations and Ansys evaluations show how these design advantages address cracking, deformation and bolt wear, supporting longer, more predictable service life.

Why design matters

Apron feeders handle heavy, abrasive bulk material where conveyor belts are unsuitable. Many feeder systems see large material dropped from a hopper above and face high impact. The pans form the load-bearing deck that carries this material toward downstream crushing equipment.

Consistent loading matters. Many crushers require choke feeding or a steady material supply without overloading and underloading. Uneven loading can increase wear, affect output sizing and reduce processed tonnage. The condition of the feeder pans therefore has implications beyond the feeder itself.

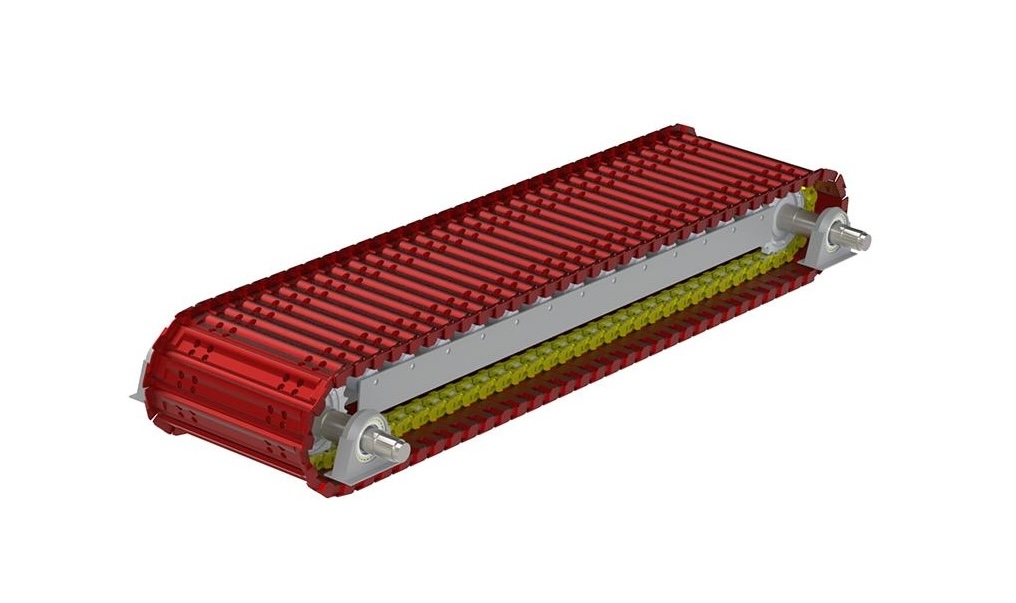

Figure 1. Apron feeder pan assembly.

An apron feeder is a chain-driven metal conveyor. Each pan has a main bearing surface and an interlocking tongue that overlaps adjacent pans. Together, these pans create a continuous deck that minimizes material spillage into the chain and drive components.

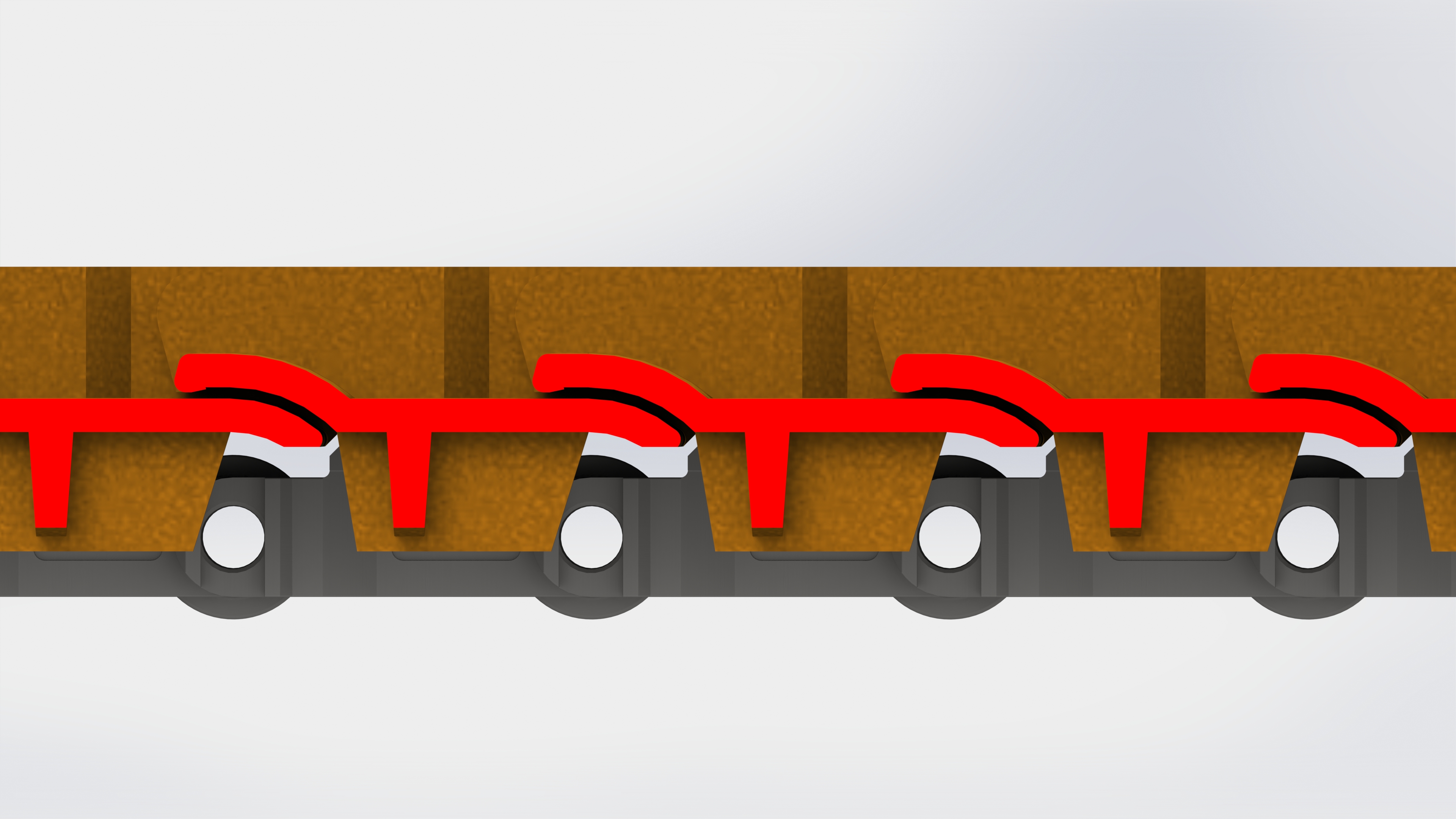

Figure 2. Interlocking feeder pans form a continuous deck.

One-piece casting strengthens the wing connections

The wings along the sides of a feeder pan experience lateral loads. In fabricated pans with welded wings, stress can concentrate at the joint between the wing and pan body. Unicast’s Ansys analysis identified these concentrations in the weld and heat-affected region, where cracking was already likely to develop.

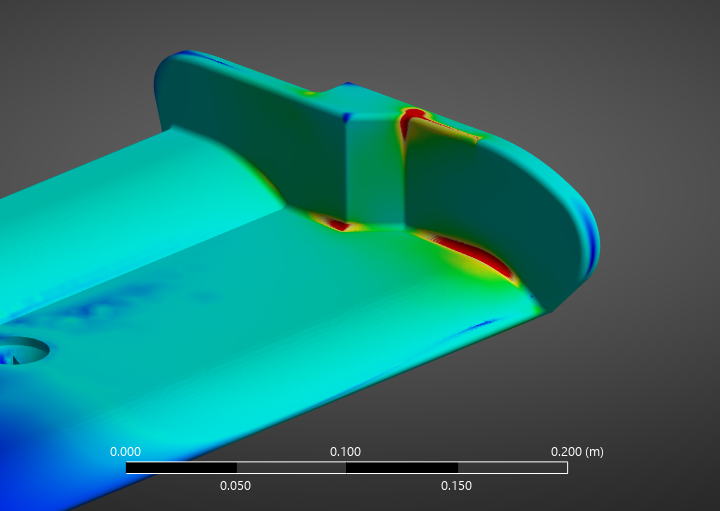

Figure 3. Ansys analysis showing stress concentrations at the fillet between the wing and pan body.

One-piece casting allows Unicast to reinforce this connection with thicker sections and suitable fillet radii. The reinforcement is incorporated into the casting, without separate welded plates or additional components. Eliminating the welded joint and maintaining consistent material properties through the connection increases strength in a region exposed to repeated loading.

This is a direct service-life advantage: the design addresses the location where stress concentrates, rather than relying on a welded connection to withstand it.

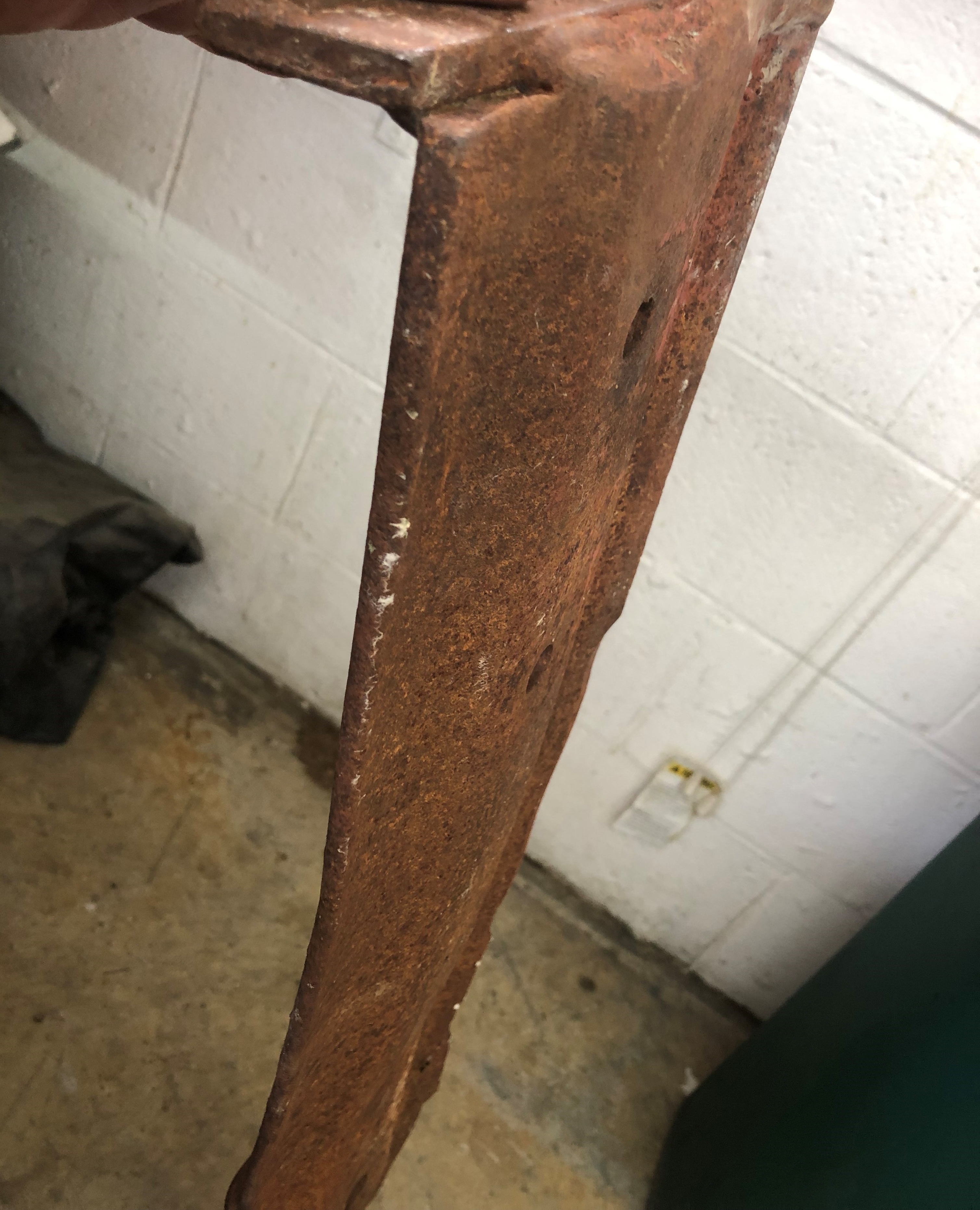

Figure 4. Fabricated feeder pan showing weld-region cracking, incomplete welds and cracking in the bent pan body, as documented by Unicast.

Integral ribs improve resistance to bending

Unicast has also observed feeder pans bending in service. Deformation can increase wear on the drivetrain and chain, overload bolted connections and cause bolt head failures. Bending resistance therefore helps protect both the pan and the components that support and drive it.

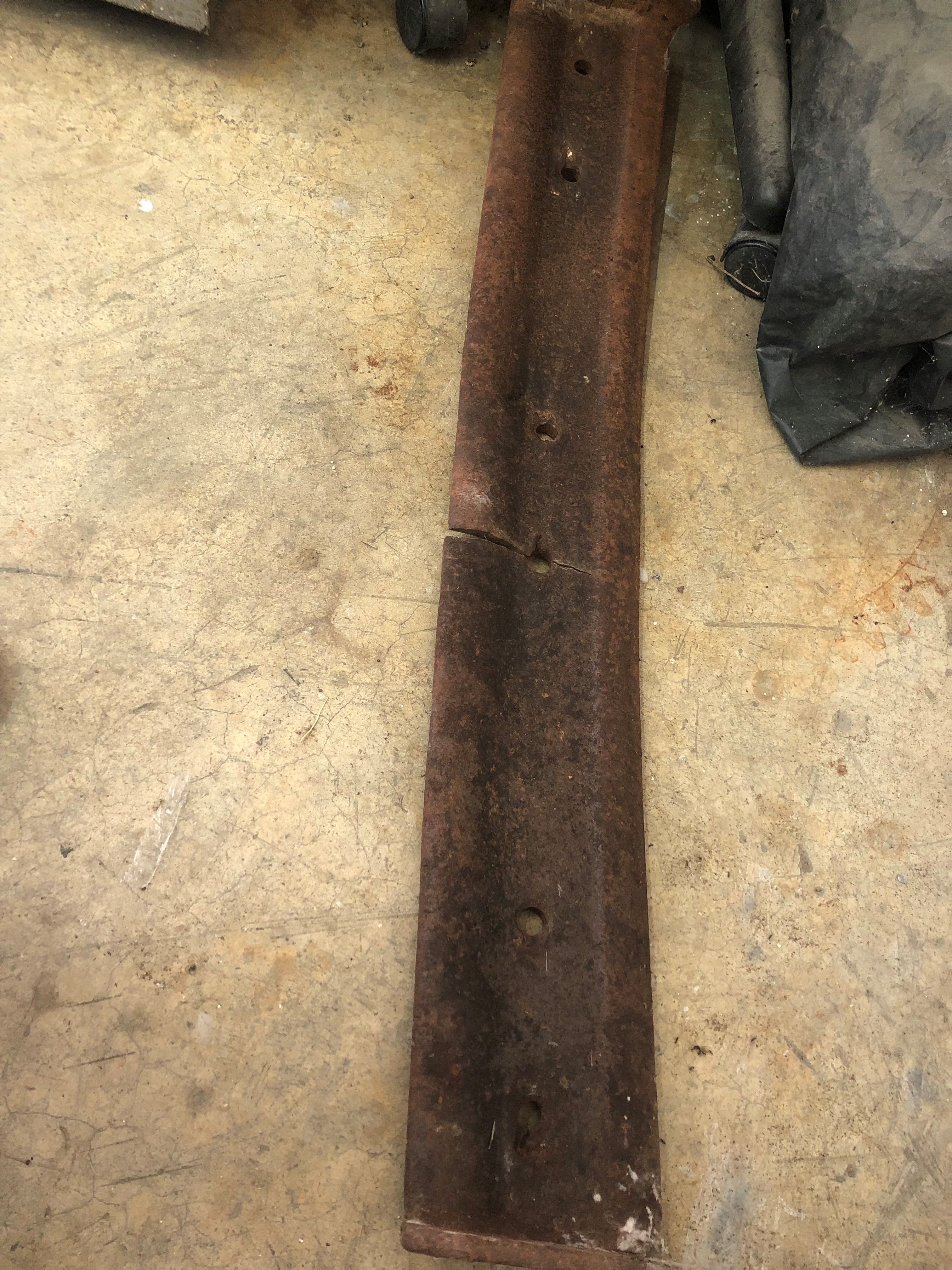

Figure 5. Feeder pan bending observed in service by Unicast.

To evaluate reinforcement, Unicast compared a standard pan design with a design incorporating reinforcement ribs in Ansys under overload conditions. The reported centre displacement decreased from 2.4 mm without reinforcement to 1.7 mm with reinforcement, approximately 30% less displacement in the evaluated comparison.

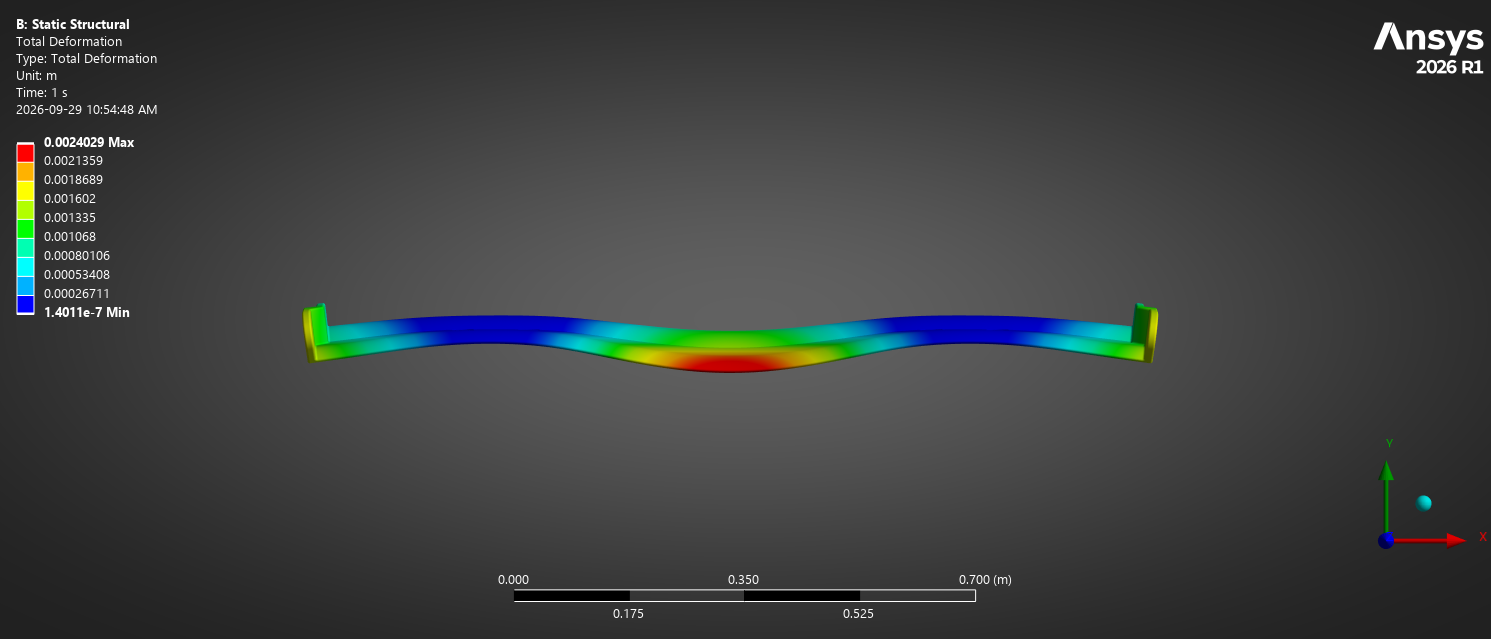

Figure 6. Ansys static bending evaluation without reinforcement: 2.4 mm centre displacement. Deformation is exaggerated 19 times for demonstration.

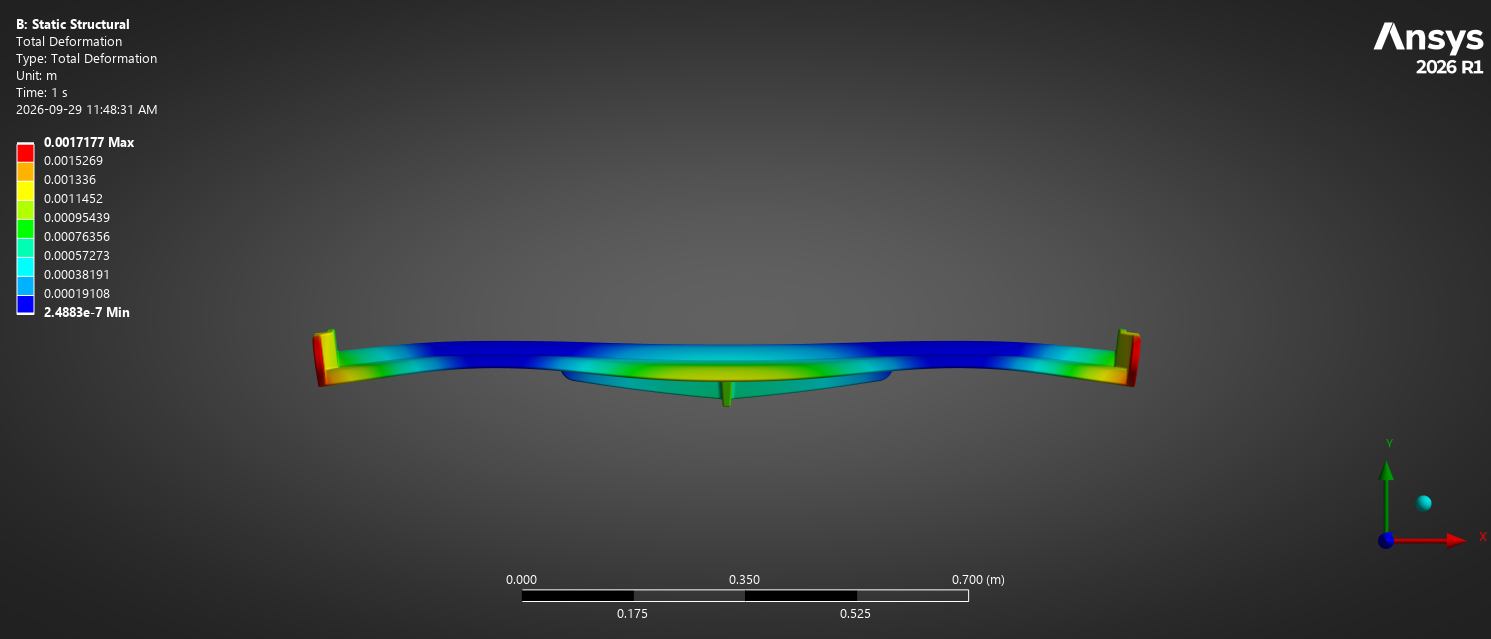

Figure 7. Ansys static bending evaluation with reinforcement: 1.7 mm centre displacement. Deformation is exaggerated 19 times for demonstration.

Casting makes these ribs an integral part of the pan. Achieving the same reinforcement through fabrication requires additional welding labour, which becomes significant as apron feeder systems contain hundreds of pans. The cast design combines improved bending resistance with a practical way to repeat the geometry across the full assembly and maintain consistent material properties throughout the part.

Recessed bolt heads reduce exposure to abrasion

Mounting bolts are another wear point Unicast has identified in the field. Bolt heads exposed to the material stream can wear prematurely, compromising a critical connection between the pan and its supporting system.

Recessing the heads helps protect them from sustained abrasive contact. In a fabricated pan, machining recesses large enough to provide that protection adds cost. Unicast’s precision casting and quality control processes allow the bolt-head recesses to be formed directly in the casting without the need for post-processing.

Manganese steel combines toughness with work hardening

Geometry and material selection work together. Bending, abrasion and cyclic loading place different demands on a feeder pan, and highly weldable alloys generally involve trade-offs in toughness or abrasion resistance.

Casting allows Unicast to use high-manganese Hadfield steel. This material provides high toughness and work-hardens in service, developing a harder surface that significantly improves wear resistance. For pans exposed to heavy loading and impact, that combination addresses the need to withstand mechanical loading while resisting abrasive wear.

Longer wear life comes from the combined design: a tough, work-hardening material; stronger wing connections; reinforcement against bending; and protected mounting bolt heads.

Evaluate service life alongside purchase cost

Individually fabricated pans can be cheaper and faster to produce, depending on design complexity. Bulk production of pans, however, becomes much more economical with casting. Additionally, the operational comparison should also consider replacement frequency, maintenance labour, damage to associated components and production lost during unplanned downtime.

Casting enables complex geometry, targeted reinforcement and design evaluation around the application. These features can extend the service life of the feeder system and reduce production costs by addressing the wear and structural demands identified in service.

Unicast has supplied cast pans for apron feeders and chain configurations worldwide, including systems originally built by Metso, Krupp and other manufacturers, as well as custom-designed systems. The pan design must account for the existing assembly as well as its operating demands.

Key takeaways

• One-piece cast apron feeder pans eliminate welded wing joints and allow thicker sections and fillet radii at highly stressed connections.
• Unicast’s Ansys comparison showed approximately 30% less centre displacement with reinforcement ribs, from 2.4 mm to 1.7 mm.
• Cast-in bolt-head recesses protect mounting bolts from abrasive wear without machining those recesses after casting.
• High-manganese Hadfield steel combines toughness with a surface that work-hardens in service to improve wear resistance.
• Pan selection should account for service life, maintenance and downtime alongside initial manufacturing cost.
