SearchableUniBall Valve for Slurry Transport Systems
The UniBall Valve is a three-way check valve designed for abrasive slurry transport systems where maintenance access, wear protection, and downtime control matter.

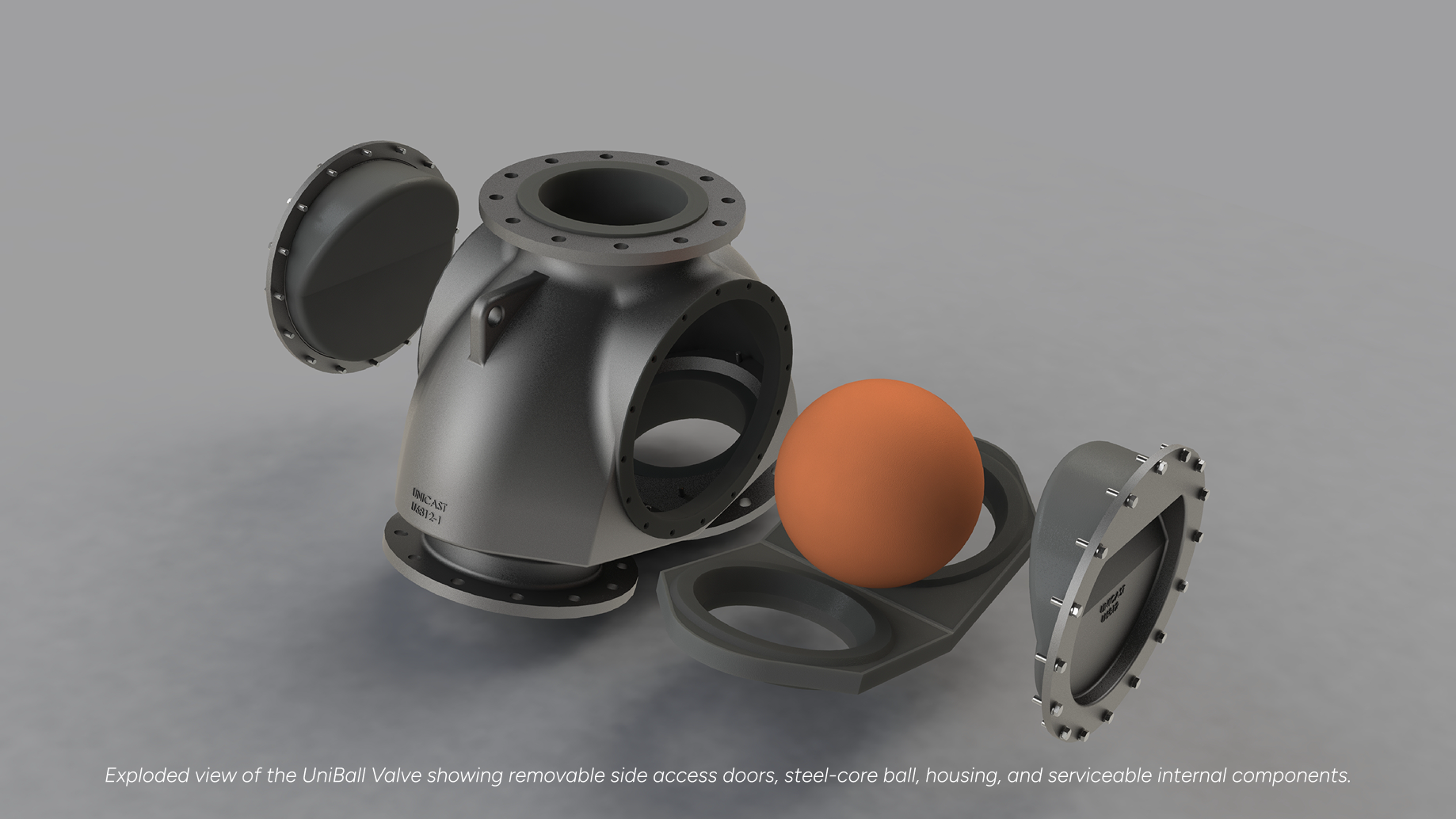

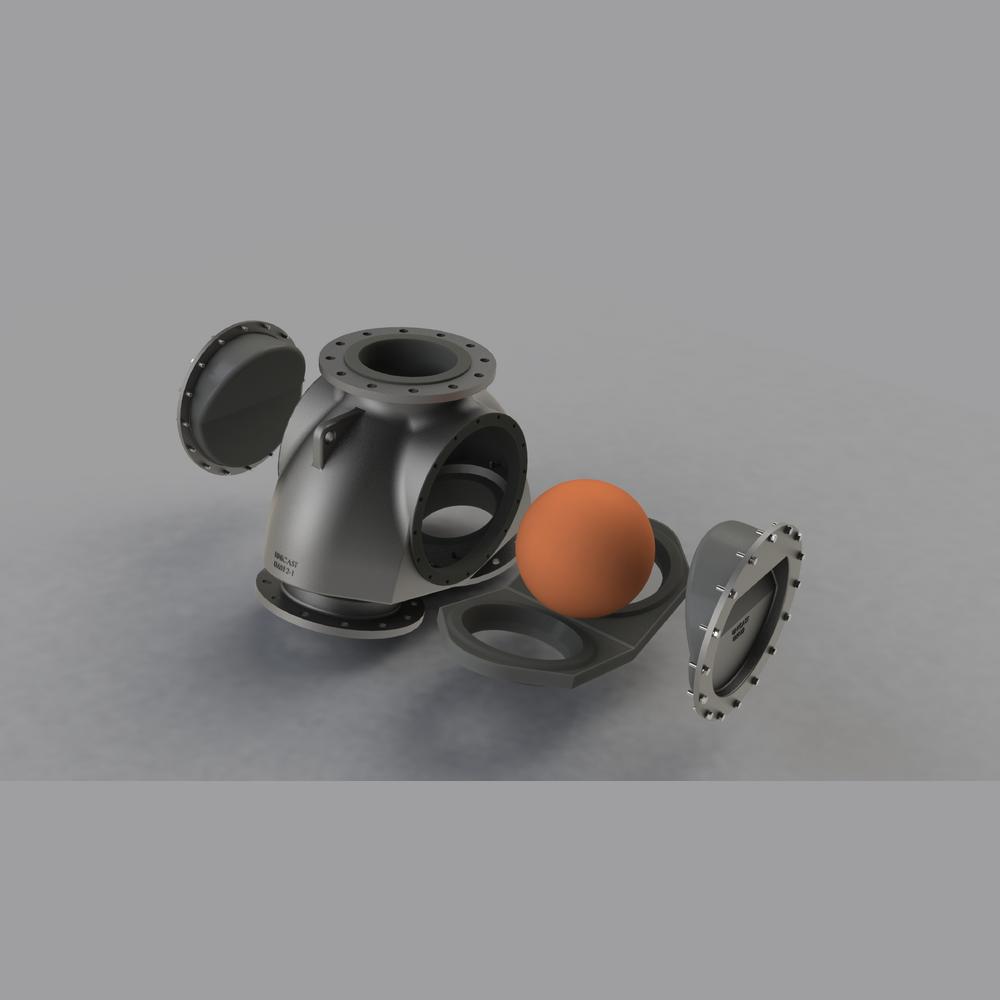

Unicast's UniBall Three-Way Check Valve is built to reduce that maintenance burden. Its large removable side access doors and removable seats allow regular maintenance while the valve remains installed in the pipeline.
p>In slurry pipelines, the issue is not just that valves wear. It is that valve maintenance often means isolating the line, removing the valve, bringing in lifting equipment, and losing production time before the actual repair work can even begin.
UniBall Three-Way Check Valve for High-Wear Slurry Applications
The UniBall Three-Way Check Valve and converging valve, is used in slurry transport applications where abrasive material flow can wear internal valve components and make conventional maintenance difficult.
It is designed for industrial environments such as:
- Mining
- Cement
- Aggregates
- Coal
- Oil & Gas slurry handling systems
In these systems, valve performance is tied directly to maintenance practicality. A valve may be strong enough to survive abrasive service, but if every service interval requires full removal from the line, the lifecycle cost can still be high.
Application Fit
The UniBall Valve is suited for slurry transport systems where abrasive material flow makes internal valve wear a recurring maintenance concern.
Typical application environments include:
- Slurry transportation pipelines
- Converging valve applications
- Abrasive mineral processing systems
- Cement and aggregate material handling systems
- Coal processing systems
- Oil & gas slurry handling applications
The best fit is any system where access to internal wear components is a practical constraint. If maintenance teams are losing time removing valves from the line just to replace serviceable internal parts, the UniBall design directly addresses that problem.
What Typically Fails in Slurry Check Valves
Slurry systems expose valve components to continuous abrasion. The highest-risk areas are the internal surfaces that come into contact with moving slurry, especially around the ball, seats, and flow path.
What typically happens is simple:
Abrasive slurry wears the contact surfaces. Seats become service items. Internal protection becomes critical. Maintenance access becomes the difference between a controlled service task and a larger shutdown event.
In conventional valve layouts, reaching the seats can require removing the valve from the pipeline. That adds labour, lifting equipment, safety planning, and downtime before replacement work begins.
The UniBall Valve addresses this failure mode by making the wear-related service points accessible from the sides of the valve body.
Diverter Valves Configurations
Classic Diverter Valve
- Pneumatic, manual or electric motorized actuation
- Left or right-hand drive
- Suitable for standard routing applications
- Compatible with retrofit installations
Split Modular Valve (SMV)
Designed for tight structural clearances and restricted-access installations.
- Pneumatic, manual or electric motorized actuation
- Modular body construction
- Faster right-left reconfiguration
- Improved service accessibility
- Available from 8 inches and larger sizes
- No impact tools required
- Controlled routing applications
Split Modular Valve (SMV) with Direct Drive Motor
- Built-in limit switches and starter
- Quick and easy integration - lower labour costs.
- No limit switch exposure to corrosive environments
- Manual actuation (via hand-wheel) in the event of a power outage
Available Sizes & Options
Standard stocked sizes:
4” 5” 6”, 8”, 10”, 12”, 14”
Additional sizes:
16”, 18”, 24"
Custom builds:
Up to 24”
Optional safety guarding is available.
4” 5” 6”, 8”, 10”, 12”, 14”
Additional sizes:
16”, 18”, 24"
Custom builds:
Up to 24”
Optional safety guarding is available.
Outlet angles:
30-degree and 45-degree configurations
Actuation options:
30-degree and 45-degree configurations
Actuation options:
- Electric gear motor
- Pneumatic actuator
- Manual handwheel actuator
Operational Boundaries
Recommended for:
- Dry abrasive bulk materials
- Pneumatic conveying systems
- Gravity-fed routing systems
- Cement, fly ash and dry abrasive powders
- Coal fines and dry mineral concentrates
Not recommended for:
- High-pressure slurry service
- Continuous simultaneous bidirectional flow
- Severe chemical corrosion environments
- Extreme impact loads exceeding ceramic tolerance
Failure Diagnostics
Inspect abrasion-resistant diverter valves when:
- Seal leakage develops
- Gate movement resistance changes
- Particulate bypass is observed
- Access panel inspection shows liner wear progression
| Comparison Point |
|---|
| Comparison Point |
|---|
| Comparison Point | Split Modular Valve (SMV) | Classic Diverter Valve |
|---|---|---|
| Structural clearance | Designed for tighter spaces and retrofit applications where clearance is limited. | Suited for standard layouts with adequate installation space. |
| Orientation flexibility | Modular design allows easier left/right orientation changes. | Typically configured for fixed routing requirements. |
| Installation approach | Useful where access, handling, or space constraints are a major consideration. | Useful for standard installations with established routing. |
| Best-fit applications |
Engineering Comparison
Ceramic-Lined vs AR Steel Diverter Valves
| Factor | Ceramic Diverter Valves | AR Steel Valves |
|---|---|---|
| Replacement frequency | Reduced | Increased |
| Weight | Moderate | Heavy |
In cement and mining environments, ceramic-lined diverter valves typically outperform steel-based alternatives in total lifecycle cost.
Ceramic-Lined vs Rubber-Lined Diverter Valves
| Condition | Ceramic-Lined | Rubber-Lined |
|---|---|---|
| Dry abrasive material | Excellent | Moderate |
| Impact-heavy flow | Moderate | Good |
| Temperature stability | High | Limited |
| Lifecycle cost in abrasive cement | Lower | Higher |
Rubber-lined diverter valves may perform well in impact-dominant scenarios but degrade faster under dry abrasive erosion.
Split Modular Valve vs Classic Diverter Valve
| Scenario | Split Modular Valve (SMV) | Classic Diverter Valve |
|---|---|---|
| Structural clearance | Designed for tighter spaces and retrofit applications where clearance is limited. | Suited for standard layouts with adequate installation space. |
| Orientation flexibility | Modular design allows easier left/right orientation changes. | Typically configured for fixed routing requirements. |
| Installation approach | Useful where access, handling, or space constraints are a major consideration. | Useful for standard installations with established routing. |
| Best-fit applications |
Tight clearances, retrofit projects, and applications needing configuration flexibility. | Standard routing layouts, fixed routing applications, and conventional installations. |
Industry-Specific Performance
Technical & Decision FAQs
- When should I specify a ceramic-lined diverter valve instead of a steel valve?
- If your application involves continuous dry abrasive flow such as cement powder, coal fines, fly ash or metal oxides (powder), steel-bodied diverter valves typically erode rapidly at inlet and throat transitions. Ceramic-lined diverter valves are specified when abrasion-driven wear is the dominant failure mode.
Unicast ceramic diverter valves use 3/4-inch cast ceramic liners in high-wear zones to significantly reduce erosion and extend maintenance intervals in abrasive bulk material systems. - What typically fails first in standard diverter valves?
- In abrasive bulk material handling systems, failure usually begins at:
- Gate-seat sealing surfaces
- Discharge throat transitions
- How long do ceramic diverter valves last in cement or mining plants?
- Service life depends on material abrasiveness, velocity, and duty cycle. In cement and mining applications, ceramic-lined diverter valves typically outlast steel or rubber-lined alternatives due to superior resistance to dry particulate erosion.
Unicast diverter valves are backed by a 25-year warranty on valve bodies, reflecting confidence in long-term abrasive performance. - How much downtime does diverter valve maintenance require?
- Traditional diverter valves can have limited maintenance access depending on installation layout and structural clearance. In many plants, servicing wear components requires partial disassembly or difficult access conditions, which can extend maintenance time and increase shutdown exposure. Unicast diverter valves are engineered for inline maintenance access, allowing typical service completion in approximately 1-3 hours without structural removal.
This is particularly critical in elevated installations where maintenance access risk is high. - How do I choose between a split modular valve and a classic diverter valve?
- Split modular valves are recommended when:
- Structural clearance is limited
- Frequent right-left orientation changes are required
- Access constraints increase service difficulty
Unicast offers both configurations to match installation constraints and maintenance strategy. - Are diverter valves suitable for pneumatic conveying systems?
- Yes, diverter valves are commonly used in pneumatic conveying systems for dry bulk material routing. Proper selection depends on material abrasiveness, velocity, and pressure. Application review is recommended to confirm compatibility.
Unicast diverter valves are engineered specifically for abrasive bulk material handling in gravity-fed and pneumatic systems. - When should a ceramic diverter valve NOT be used?
- Ceramic-lined diverter valves may not be appropriate in:
- High-pressure slurry service
- Extremely impact-dominant conditions exceeding ceramic tolerance
- Highly corrosive chemical-only environments
Designed for Abrasive System Reliability
Unicast ceramic diverter valves are engineered specifically for dry bulk material systems where predictable wear life, seal integrity, and controlled maintenance access are required. Configuration and actuation options are selected based on material abrasiveness, flow velocity, and installation constraints.
