Will Ceramic-Lined Pipe Restrict Flow? What Unicast’s CFD Analysis Found

June 01, 2026

In abrasive flow systems, wear life is the primary concern, but maintaining performance is also essential.

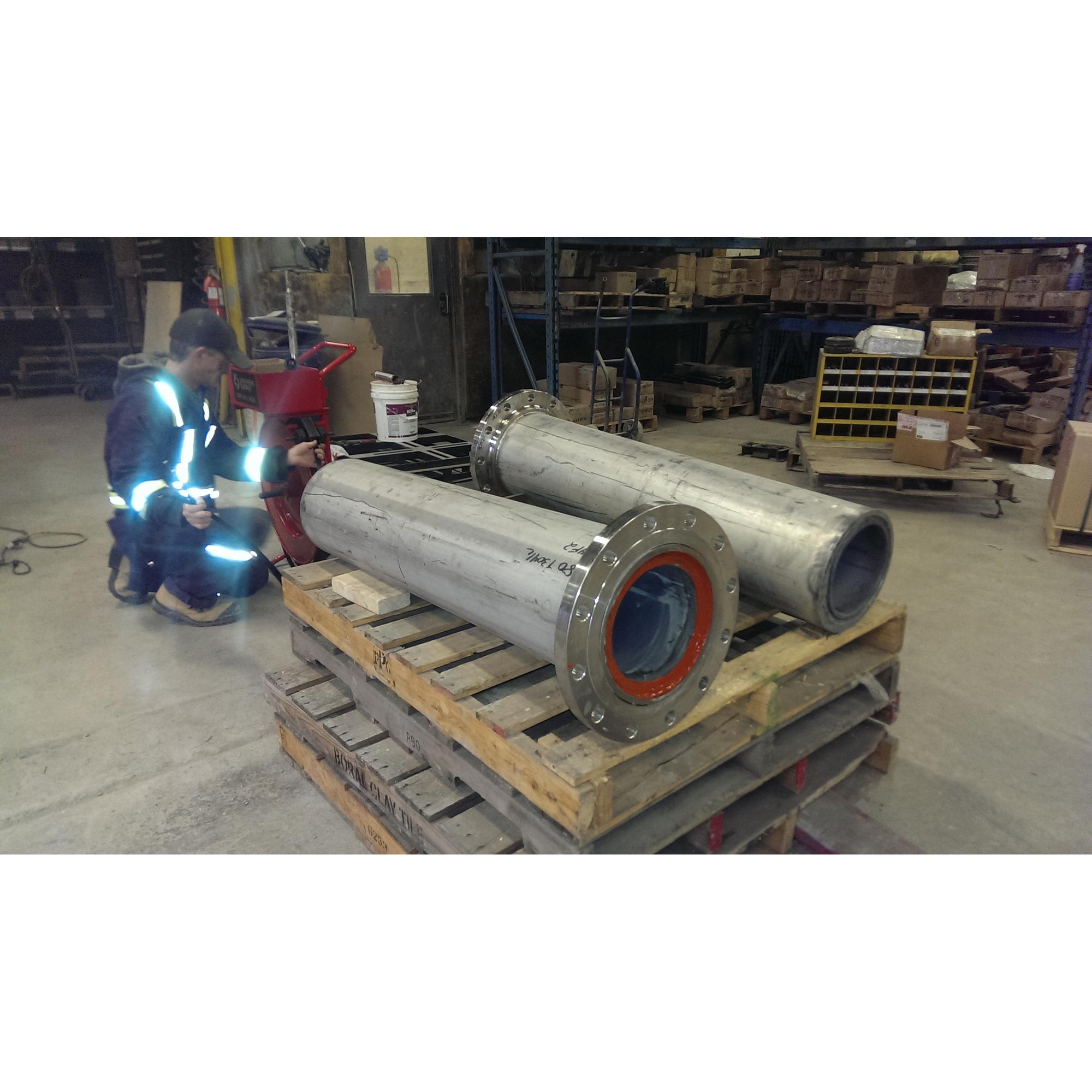

A ceramic-lined elbow or pipe section may offer a major improvement in abrasion resistance, but it can also raise a practical engineering question: will the lining reduce the internal diameter enough to disrupt flow?

That concern is valid. Any change in internal diameter can affect velocity, turbulence, and pressure loss. In high-throughput systems, even small changes are worth checking before a component is installed in a critical line.

Unicast recently evaluated this exact concern through an internal CFD analysis. The goal was to compare flow behaviour through an unlined pipe section and a ceramic-lined pipe section where the lining reduced the effective internal diameter. The analysis found that the additional pressure loss caused by the ceramic-lined section was 0.0016 PSI, which Unicast considered allowable when weighed against the expected increase in wear life.

The result matters, but the bigger point is this: flow concerns should be evaluated in context, not assumed.

Why Internal Diameter Concerns Matter in Abrasive Flow Systems

In mining slurry systems, cement plants, aggregate processing lines, coal handling systems, and other abrasive environments, flow behaviour affects more than throughput.

It can influence:

• localized turbulence
• erosion patterns
• wear concentration at elbows and transitions
• maintenance frequency
• replacement timing
• total lifecycle cost

Elbows and directional changes are especially important because they are already high-wear zones. When abrasive material changes direction, particles tend to concentrate impact and erosion at specific areas of the pipe wall. If a liner changes the flow path, engineers need to understand whether that change creates a meaningful operational penalty.

That does not mean ceramic lining should be avoided. It means the tradeoff should be evaluated properly.

The Common Concern: Smaller ID Automatically Means a Flow Problem

A reduction in internal diameter can increase pressure loss, but the key question is scale.

Not every ID reduction creates a meaningful operating issue. In some cases, the pressure difference is small enough that the system impact is minimal, especially when compared with the benefit of longer wear life.

That was the purpose of the Unicast analysis.

The customer wanted to understand whether the ceramic liner would “choke” the flow. Instead of treating the concern as theoretical, Unicast compared the unlined and lined configurations using a flow simulation. The model assumed a flow rate of 10 m/s, with air as the medium, no particulate effect, and no-slip wall conditions.

These assumptions allowed the team to isolate the effect of the geometry change and evaluate whether the reduced internal diameter created a significant head loss.

What the CFD Analysis Found

The CFD analysis compared pressure loss through the unlined pipe section and the ceramic-lined pipe section.

The result:

• Unlined pipe pressure loss: 14.7 Pa
• Ceramic-lined pipe pressure loss: 26.0 Pa
• Difference: 11.3 Pa
• Equivalent difference: 0.0016 PSI

In this simulation, using air as the medium and excluding particulate effects, the added pressure loss from the ceramic-lined section was 0.0016 PSI. Based on the analysis, Unicast considered the pressure loss acceptable, particularly given the significant increase in product life expected from the ceramic-lined design.

The analysis also showed increased turbulence in the lined pipe. However, the increased turbulence was concentrated mostly inside the ceramic-lined region, where the material has significantly higher abrasion resistance.

That distinction matters. Turbulence is not automatically a problem if it occurs in a zone specifically designed to resist abrasion.

Figure 1: CFD comparison of turbulent flow through an unlined pipe and a ceramic-lined pipe. The lined pipe shows increased turbulence, but the higher turbulence is concentrated within the ceramic-lined region, where abrasion resistance is significantly improved.

Why Wear Resistance Can Outweigh Minor Pressure Loss

In abrasive piping systems, the lowest pressure loss option is not always the lowest-cost option.

An unlined pipe may preserve more internal diameter, but it may also wear faster in high-abrasion service. Once wall loss accelerates, the system may face more frequent inspections, earlier replacement, unplanned downtime, and increased safety exposure during maintenance.

A ceramic-lined pipe or elbow is designed to shift the performance equation. The goal is not simply to move material through the pipe. The goal is to move abrasive material through the pipe while controlling wear over a longer operating period.

That is why pressure loss needs to be evaluated alongside:

• expected wear life
• abrasive severity
• maintenance access
• downtime cost
• replacement frequency
• installation constraints
• lifecycle reliability

In this case, the added pressure loss was less than 0.002 PSI, while the ceramic-lined section provided a wear-resistant surface in the area where turbulence increased.

Why Field Conditions Still Matter

CFD analysis is a decision-support tool. It helps isolate specific variables, compare design options, and identify whether a concern is likely to be operationally significant.

It does not remove the need to understand the actual application.

In real industrial systems, wear performance can depend on:

• flow velocity
• particle size and hardness
• solids concentration
• impact angle
• temperature
• line orientation
• installation height
• maintenance access
• system duty cycle

That is why a ceramic-lined solution should not be selected on material strength alone. It should be evaluated based on the operating environment and the failure mode the system is trying to control.

For example, a high-abrasion elbow in a solids transport line may justify ceramic lining even if it slightly changes internal geometry. A low-wear straight pipe section may require a different decision. The right answer depends on where the wear happens, how fast it progresses, and how much downtime it creates.

The Operational Value of Engineering Analysis

The most important takeaway from this analysis is not just that the pressure loss was small.

The real value is that the concern was tested.

For plant teams, that matters. Engineers, maintenance managers, and procurement teams are often asked to choose between competing risks:

• preserve flow geometry or improve wear life
• minimize installed weight or maximize service life
• reduce upfront cost or reduce replacement frequency
• accept a small design change or continue replacing worn components

A practical engineering analysis helps clarify those decisions before they become field problems.

In this case, Unicast used simulation to evaluate whether the customer’s flow restriction concern was significant enough to outweigh the benefit of ceramic lining. The analysis showed that the added head loss was minimal, while the lined region offered improved abrasion resistance where turbulence increased.

That is the kind of evaluation that helps customers make better operational decisions.

When Ceramic-Lined Pipe Makes Sense

Ceramic-lined pipe and elbows are often considered when standard steel components are wearing too quickly in abrasive service.

They are especially relevant where systems experience:

• high particle velocity
• repeated impact on the elbows
• abrasive solids movement
• localized erosion
• frequent pipe replacement
• costly shutdowns for maintenance
• limited access for replacement work

The decision should not be based on lining thickness alone. It should be based on whether the expected increase in wear life justifies any change in geometry, weight, cost, or installation complexity.

In many abrasive applications, a small pressure loss may be a reasonable tradeoff if the lining reduces replacement frequency and improves system predictability.

Key Takeaways

1. Ceramic lining can reduce internal diameter, but that does not automatically mean it creates a meaningful flow restriction.
2. In Unicast’s internal CFD analysis, the added pressure loss from the ceramic-lined section was 0.0016 PSI.
3. The analysis showed increased turbulence in the lined pipe, but most of that turbulence occurred inside the ceramic-lined region, where abrasion resistance is significantly higher.
4. The operational decision is not simply flow versus lining. It is pressure loss, wear life, downtime, maintenance frequency, and lifecycle cost considered together.
5. CFD analysis can help customers evaluate whether a design concern is operationally significant before committing to a solution.
6. For abrasive industrial systems, the best component choice is the one that supports long-term reliability, not just the one that preserves the original geometry.
