SearchableCeramic-Lined Pipes and Elbows for Abrasive Industrial Pipelines

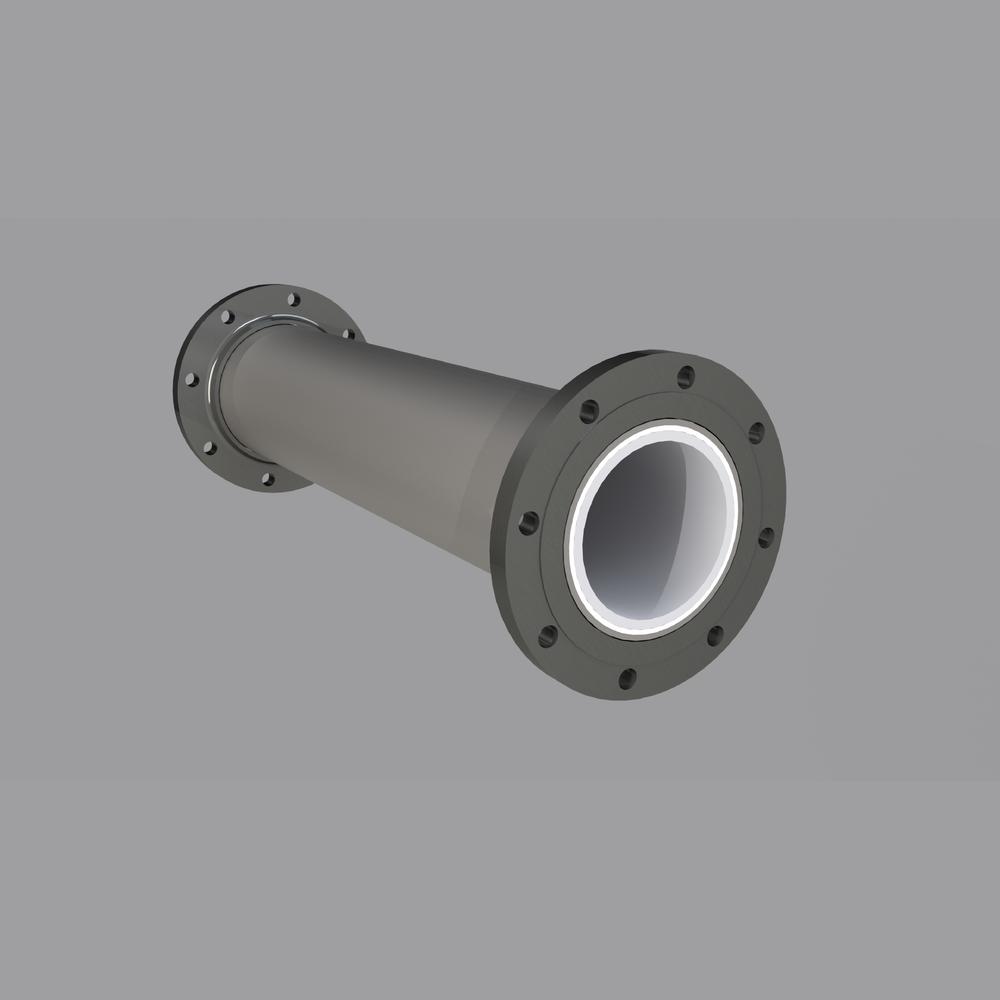

Unicast ceramic-lined pipes and elbows are designed for pipeline sections exposed to severe abrasion, corrosive media, high solids, and continuous wear. Each pipe and elbow is lined with Alumina or Silicon Carbide ceramic, protecting the steel pipe from wear and premature failure in demanding industrial environments.
Unicast ceramic-lined pipes and elbows use a composite construction, consisting of a steel pipe, a bonding layer, and an inner lining of high-purity ceramic segments (alumina or silicon carbide). These segments are installed and supported within the pipe using a heat-resistant compound.
The thin-wall ceramic structure allows the elbows to match standard nominal pipe sizes, enabling direct replacement in existing systems without pipeline modification.
This structure creates a durable, corrosion- and wear-resistant pipeline solution, significantly extending service life compared to conventional materials. Used worldwide since 1994, these ceramic-lined pipes are installed across mining, cement, aggregates, coal, oil & gas, and slurry transport systems where downtime and maintenance costs must be controlled.
Primary Advantages
- Superior Wear Resistance – Al2O3 or SiSiC ceramic significantly reduces erosion from abrasive particles
- Superior Flow Performance – Compared to other wear linings, which implement a tile approach, the even surface of Unicast's large ceramic lining inserts significantly reduces flow restrictions.
- Extended Service Life – Outperforms carbon steel and alloy alternatives in high-wear environments
- Corrosion Resistance – Suitable for chemically aggressive media
- Seamless Retrofit – Matches standard pipe dimensions; no system modification required
- Flexible Design – Custom-designed pipe sections for direct installation
- Reduced Maintenance Costs – Longer replacement cycles and less downtime
High-Wear Pipeline Sections in Abrasive Service
Ceramic-lined pipes are installed in critical wear zones, where velocity, particle size, turbulence, and corrosive media quickly degrade standard steel pipe.
Typical applications:
- Mining and mineral processing (slurry transport)
- Coal handling and ash conveying systems
- Cement and building materials industry
- Power generation (FGD systems, fly ash pipelines)
- Steel and metallurgical processing
- Chemical processing with abrasive media
In these areas, pipe wear leads directly to leaks, shutdowns, and safety risks. Ceramic-lined pipes are used to stabilize performance and extend maintenance intervals.
Why Standard Pipes Fail
In abrasive and chemically aggressive environments, unlined steel pipe fails due to:
- High-velocity slurry erosion
- Impact from coarse particles
- Turbulence at bends and elbows
- Continuous abrasive and corrosive exposure
- Localized wear at connection points
Typical solutions such as coatings, hardfacing, or ceramic tiling often fail because they wear unevenly, detach, or require frequent replacement.
For continuous operations, unpredictable wear directly impacts production reliability.
Technical Performance
Material
Alumina (Al₂O₃) or Silicon Carbide (SiSiC)
Construction
Steel pipe + bonding layer + ceramic lining
Liner Thickness
Defined by pipe diameter and application
Installation
Standard flanges or custom
Sizes
Custom diameters and lengths available
Applications
Slurry, aggregates, cement, coal, minerals, tailings

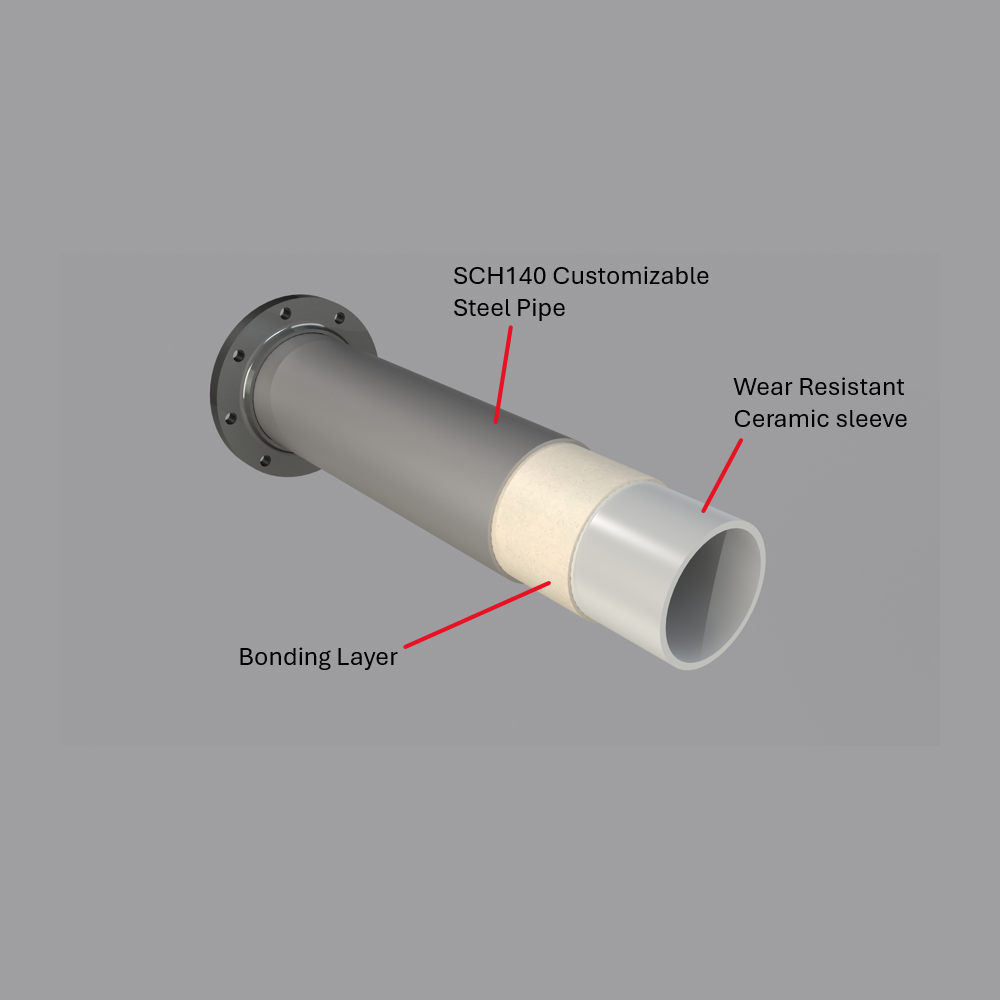

Engineered Ceramic Protection
Unicast ceramic-lined pipes use a layered internal structure:
- Steel pipe
- Bonding layer
- High-purity ceramic lining (Alumina or Silicon Carbide)
This system:
- Reduces risk of cracking and delamination
- Maintains liner stability over long service intervals
The ceramic lining provides exceptional hardness and corrosion resistance, ensuring consistent performance in severe-duty conditions.
Proven Wear Life and Cost Impact
Field performance shows:
- Up to 10× longer wear life than unlined pipe
- Stable operation in high-solids slurry
- Predictable wear patterns
- Extended maintenance intervals
- No issues or required maintenance have been reported since the first install in 1994
This reduces:
- Unplanned shutdowns
- Maintenance labour
- Spare inventory
- Production loss
In high-wear systems, ceramic-lined pipes often deliver the lowest total cost of ownership.
Ceramic-Lined Elbows for Directional Wear Zones
Ceramic-lined elbows are engineered for pipeline sections where flow changes direction and wear is most severe.
They feature:
- Integrally curved ceramic segments
- Custom ceramic lining to match designed pipe bends
- Resistance to abrasion, corrosion, and thermal stress
- Compatibility with standard pipe dimensions for direct retrofit
This design improves reliability in high-velocity, high-impact flow conditions.

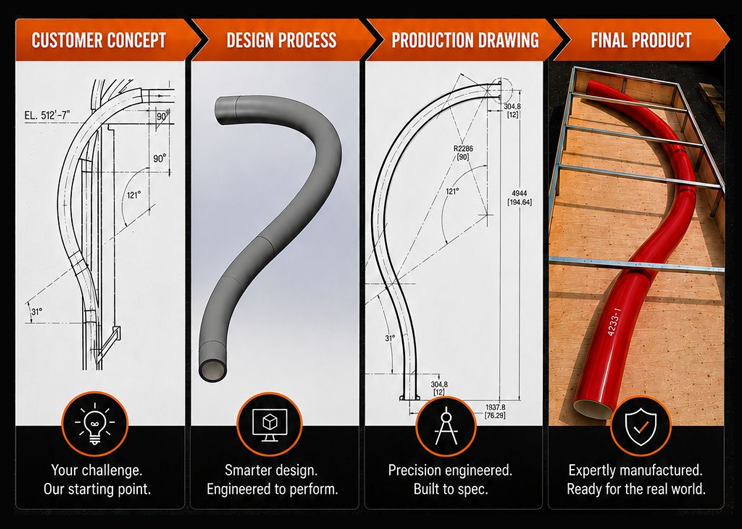

Recent Custom Build
This uniquely shaped ceramic-lined elbow was recently manufactured and shipped for a customer application, demonstrating Unicast's ability to produce custom-engineered pipeline components for challenging wear environments.
View the project on LinkedIn →
Why Unicast Ceramic-Lined Pipes
- High-purity Alumina or Silicon Carbide ceramic
- Composite structure designed for thermal and mechanical stability
- Engineered to integrate into existing pipeline systems
- Proven performance across mining, cement, and slurry transport
Built for operations where reliability matters more than initial cost.
Designed for Standard Pipelines
Unicast ceramic-lined pipes are manufactured to integrate directly into existing systems without modification.
Available configurations:
- Standard and custom pipe diameters
- ANSI, DIN, and custom flange connections
- Straight pipe sections and elbows
- Reducers and transitions
- Adjustable bend radius options
This allows installation in high-wear areas, maximizing return on investment.
Complete Pipeline Wear Protection
- Ceramic-lined slurry valves
- Ceramic-lined diverter valves
- Ceramic-lined chutes
- High-chrome wear components
Engineering Comparison
Ceramic-Lined Pipes vs Other Lined and Unlined Steel Pipes
| Feature | Unlined Pipe | Ceramic-Lined Pipe | Rubber-lined Pipe | Ceramic tiled-Lined Pipe |
|---|---|---|---|---|
| Wear life | Low | High (with minimal pressure head loss) | Medium | High (with higher pressure head loss due to discontinuity in the surface) |
| Maintenance | Frequent | Reduced | Reduced | Reduced |
| Downtime risk | High | Lower | Medium | Medium |
| Cost over time | High | Lower | Medium | Medium |
| Abrasion resistance | Low | Very high | Medium | High |
| Corrosion resistance | Limited | High | Low | High |
Ceramic-lined pipes are used when wear-related downtime becomes a major operating cost.
Typical Industries
Used where pipeline failure leads to production loss.
When to Use Ceramic-Lined Pipes
Ceramic-lined pipes are recommended when:
- Pipe wear causes frequent shutdowns
- Elbows fail quickly
- Slurry contains abrasive solids
- Maintenance costs are increasing
- Replacement access is limited
- Pipeline reliability is critical
If you are replacing pipes or elbows frequently, the issue is typically material selection, not system design.
Technical FAQs
- What are ceramic-lined pipes used for?
- Slurry and dry bulk material transport, where the steel pipes and elbows wear quickly due to excessive abrasion.
- How long do they last?
- Depending on application, ceramic-lined pipes and elbows can provide much longer wear life. A review of current application and wear challenges will help us estimate an expected wear life.
- What is the liner thickness?
- The thickness of the ceramic liner used in each application is defined by pipe diameter and operating conditions. Therefore, each pipe and elbow is custom-made for your application.
- Are they compatible with standard flanges?
- Yes, including ANSI and DIN standards.
- Are Unicast pipes corrosive and abrasion-resistant?
- We can help you with the right choice of lining for your application. A highly corrosive environment will require specific materials as opposed to an abrasion-only operation.
- Can they be customized?
- Yes, including size, thickness, and bend radius (for elbows).
