SearchableDiverter Valves for Abrasive Bulk Material Handling
Ceramic-lined Diverter Valves Engineered for High-Uptime Industrial Systems
Unicast ceramic-lined diverter valves are abrasion-resistant diverter valves designed for dry bulk material handling in mining, cement, aggregates, coal, and industrial processing plants. These bulk material diverter valves redirect flow between two discharge paths in gravity-fed and pneumatic conveying systems while resisting extreme particulate erosion.
Built with ½-inch (13mm) cast ceramic liners, precision-aligned gate and seat assemblies, and inline maintenance access, Unicast diverter valves are engineered to reduce downtime, extend service life, and protect plant uptime in high-abrasion environments.
Bulk Material Diverter Valves in Abrasive Service
Bulk material diverter valves are routing devices designed to redirect dry particulate materials between two discharge paths in gravity-fed and pneumatic conveying systems. They are commonly installed in cement, fly ash and coal routing networks, where continuous abrasive flow is present.
In high-abrasion service, wear concentrates at:
- Inlet/outlet transition regions
- Gate-seat sealing interfaces
- Curved sections
In these environments, abrasion-resistant diverter valves must be engineered to withstand sustained dry particulate erosion while maintaining seal integrity, reliability, and ease of maintenance.
Ceramic Liner Performance in High-Abrasion Diverter Valve Applications
In dry abrasive environments, ceramic-lined outlets provide improved erosion resistance and more predictable wear performance compared to standard steel or rubber-lined alternatives.

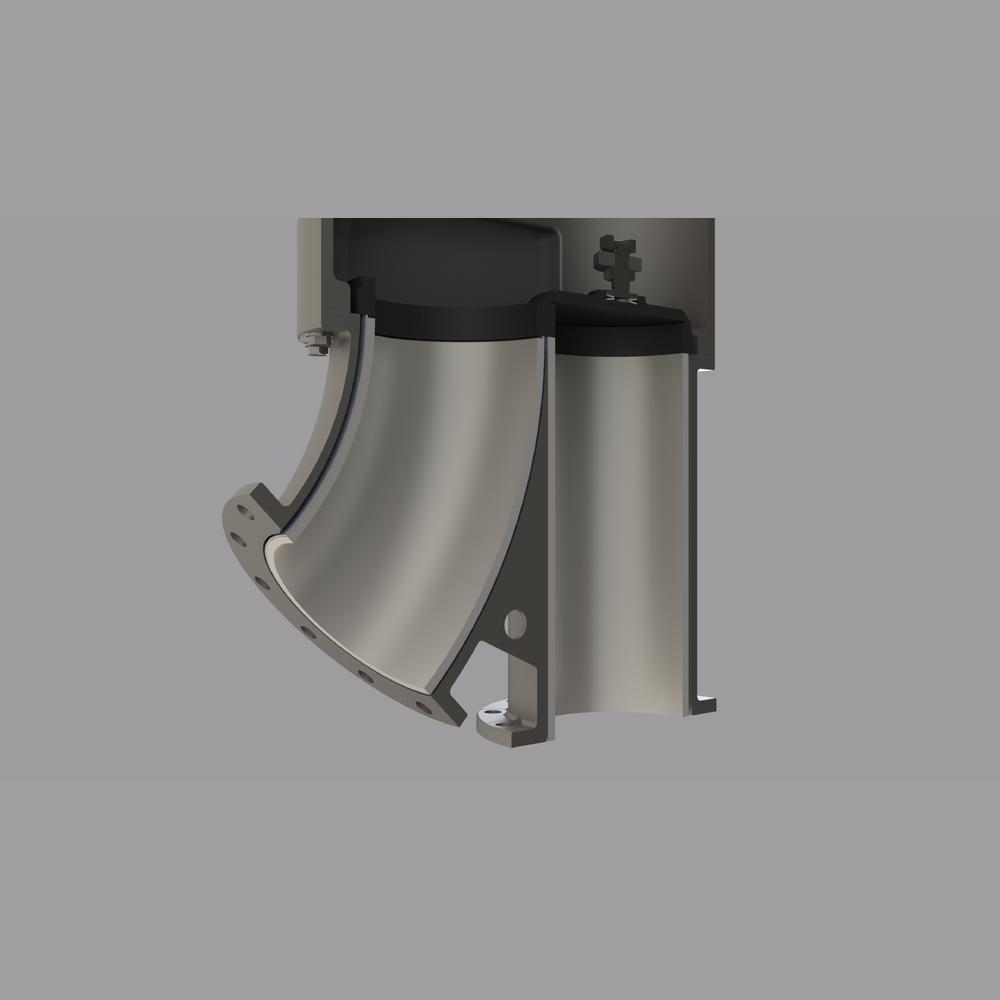

Unicast diverter valves incorporate up to 3/4” thick ceramic liners in high-wear zones.
Ceramic advantages in abrasive bulk material systems:
- Significantly higher resistance to dry particulate erosion than AR steel
- Superior wear life in fly ash, cement and coal fines
- Stable performance at elevated temperatures common in cement plants
Ceramic diverter valves are typically selected where steel-bodied valves show rapid erosion and repeated maintenance cycles.
Abrasion-Resistant Diverter Valves
Engineering Design Details
Precision Machined Gate & Seat
- Controlled sealing between gate and seat
- Reduced leakage risk
- Minimized particulate bypass
- Consistent sealing performance across cycles
Inline Maintenance Access

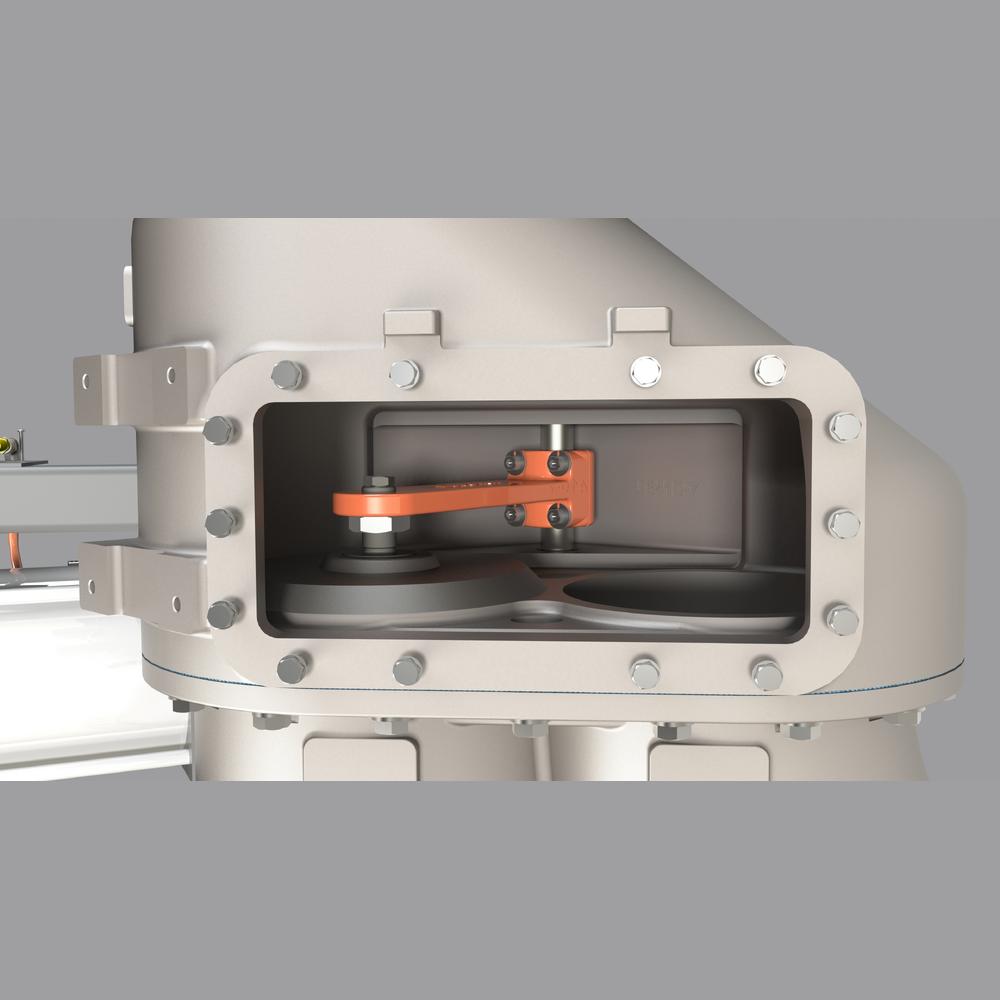

A large access panel allows maintenance to be completed while the valve remains installed in line, with typical maintenance completed in approximately 2–4 hours.
This design helps improve maintenance safety by reducing the need for valve removal, heavy lifting, elevated handling, and extended work in restricted-access areas.
Especially valuable for:
- Elevated installations
- Restricted-access platforms
- Maintenance windows with limited downtime
- Applications where reducing lifting and handling improves worker safety
NO CRANE. NO HOIST. NO EXTENDED SHUTDOWN EXPOSURE.
Diverter Valves Configurations

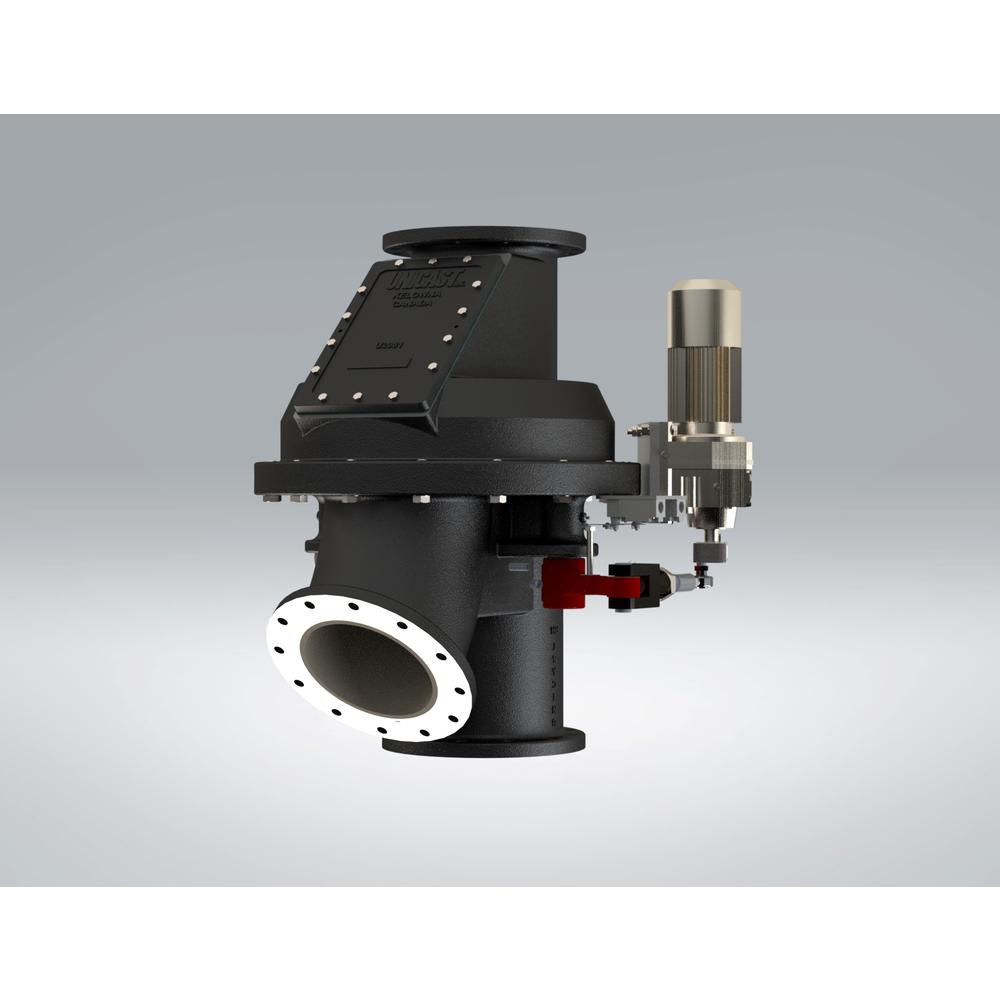

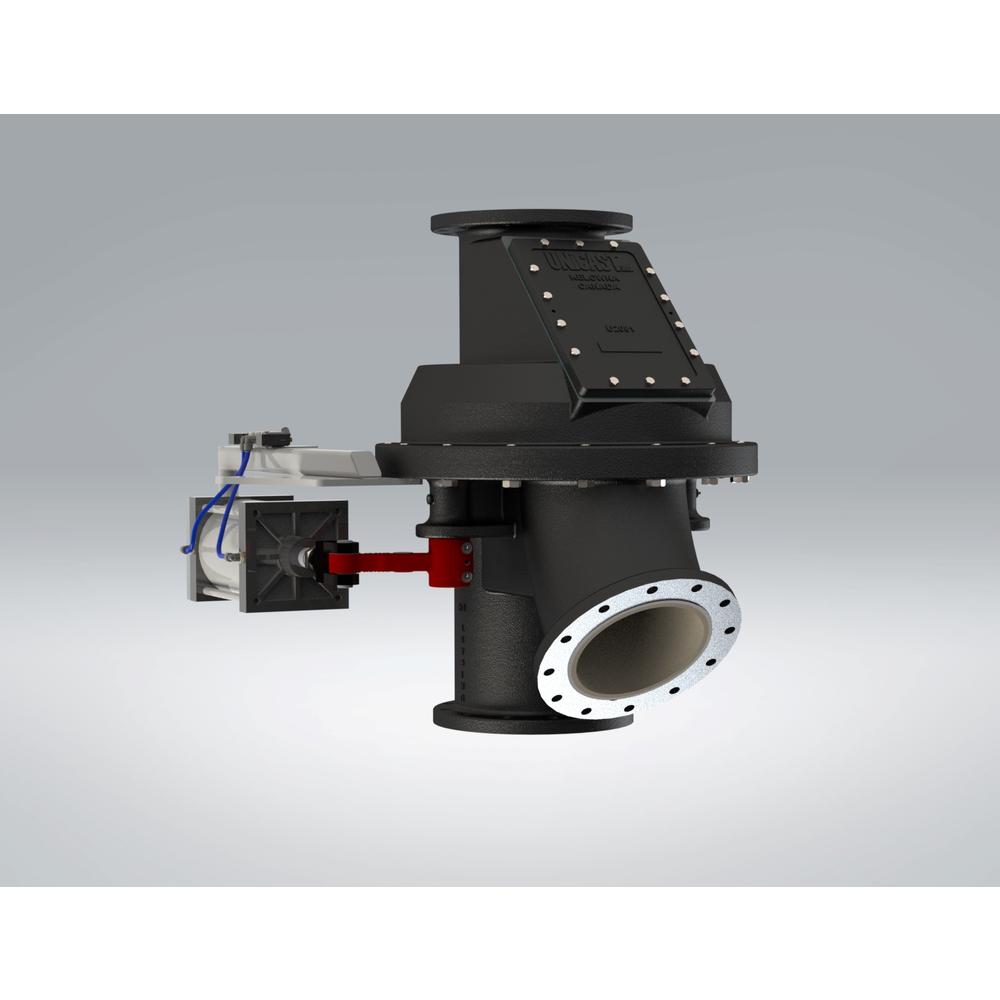

Classic Diverter Valve

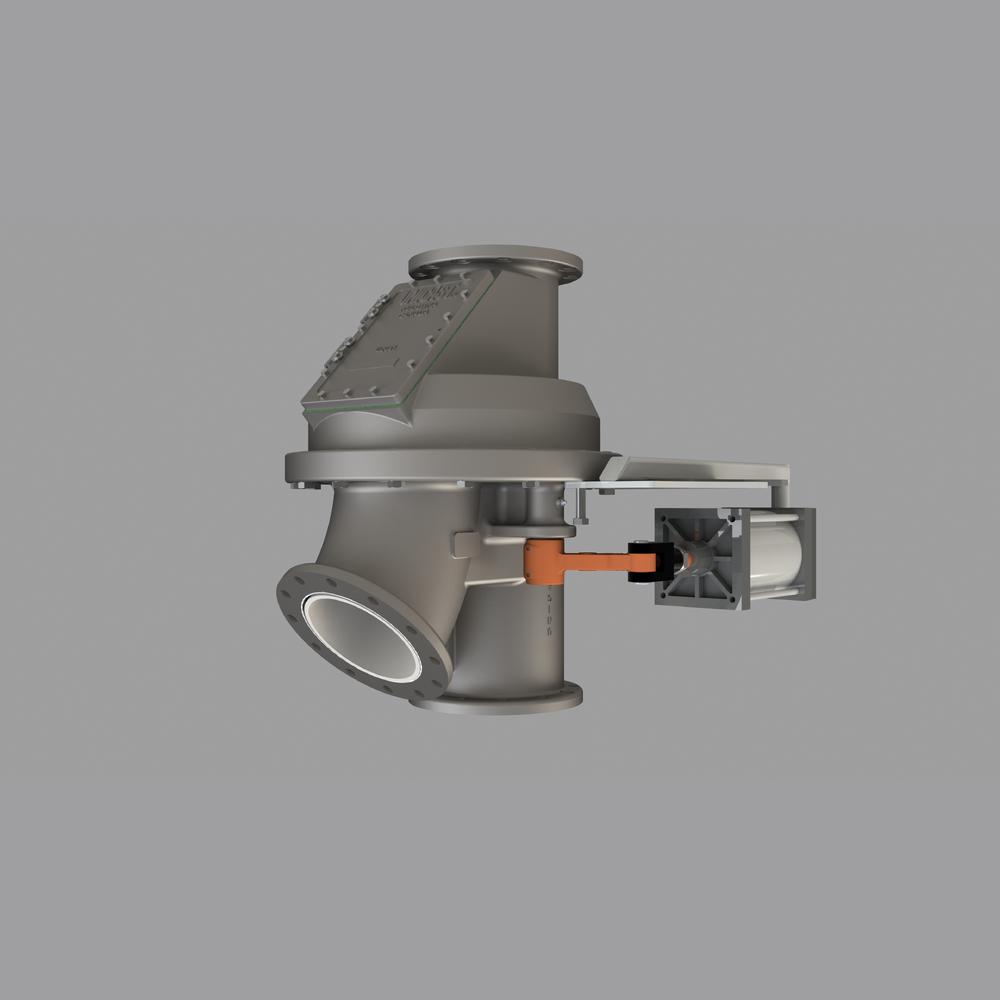

- Pneumatic, manual or electric motorized actuation
- Left or right-hand drive
- Suitable for standard routing applications
- Compatible with retrofit installations

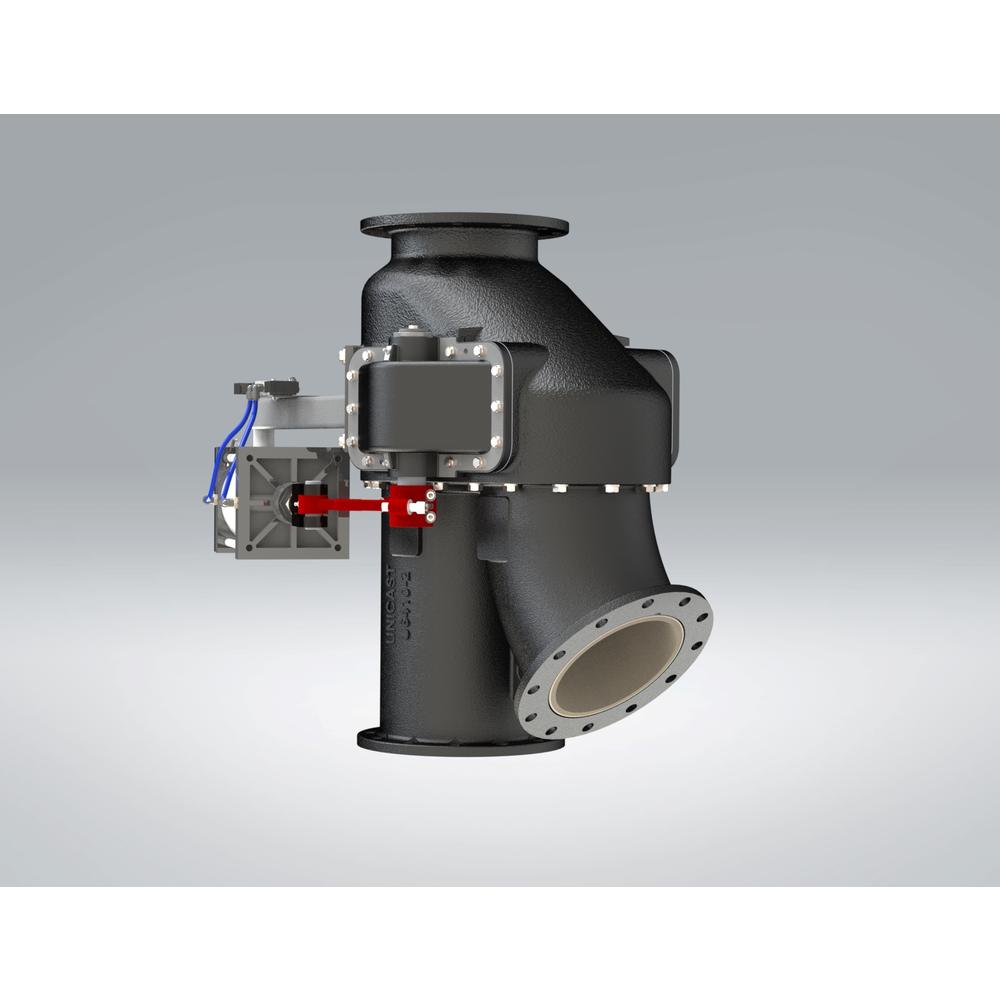

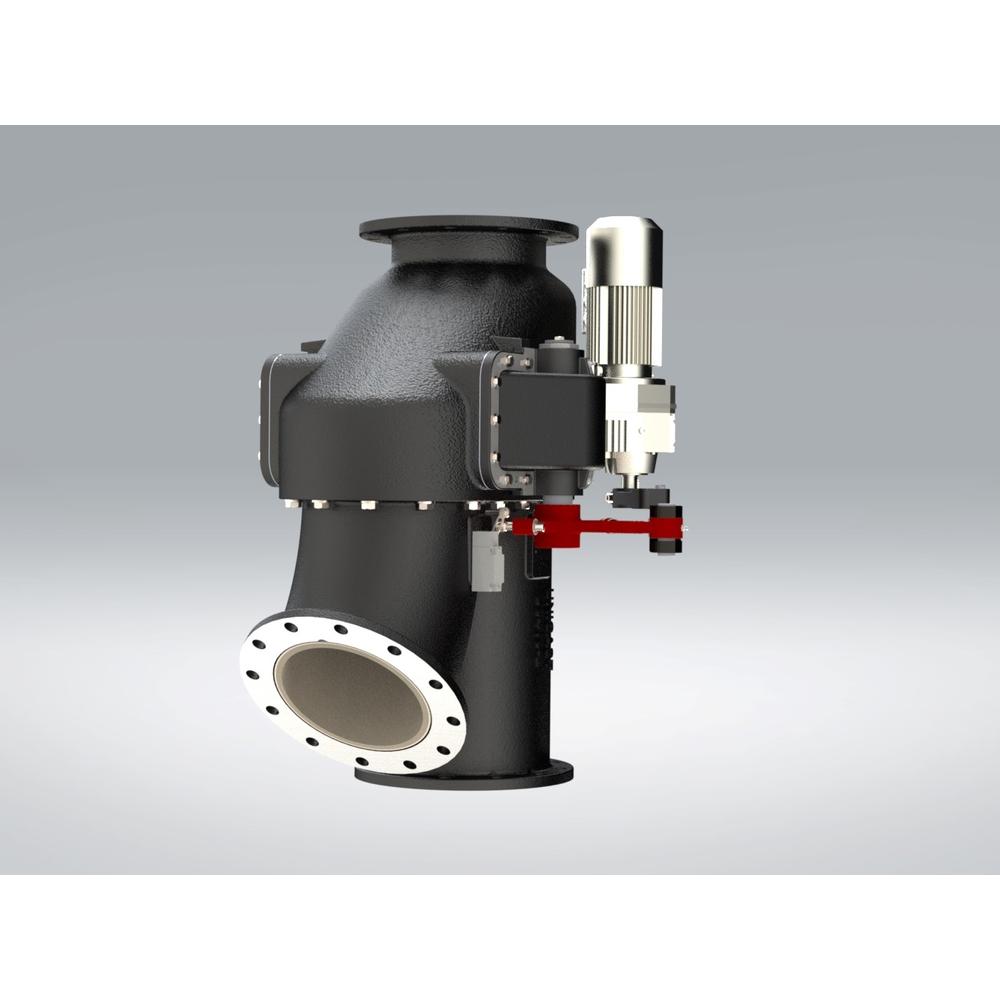

Split Modular Valve (SMV)
Designed for tight structural clearances and restricted-access installations.
- Modular body construction
- Faster right-left reconfiguration
- Improved service accessibility
- Available from 8 inches and larger sizes

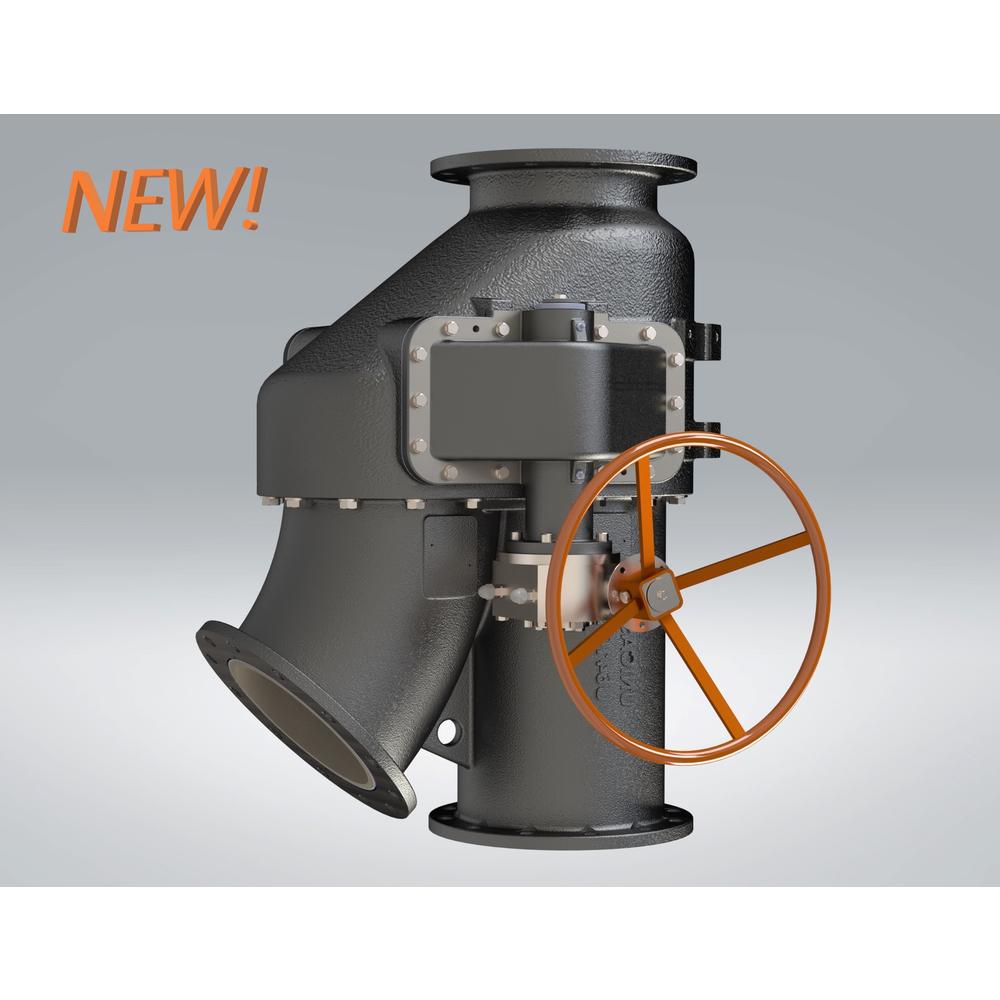

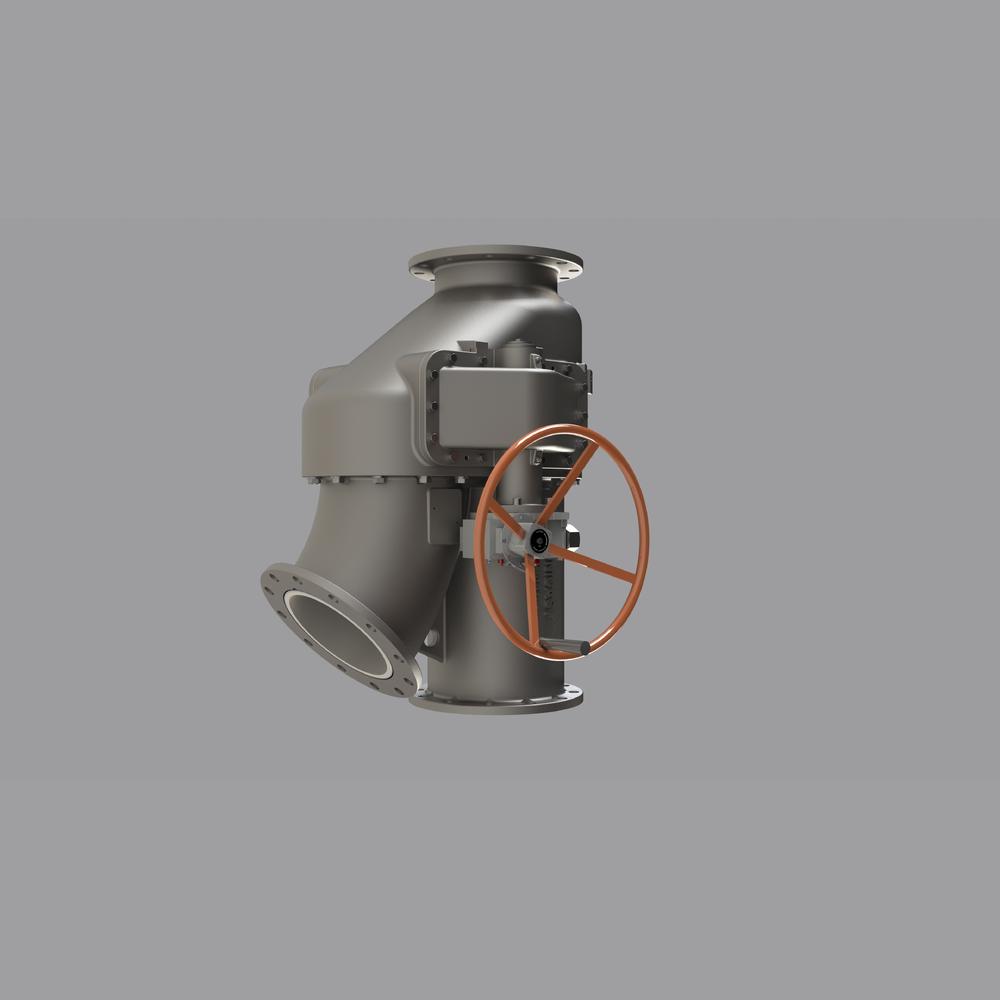

- Manual operation
- No impact tools required
- Controlled routing applications

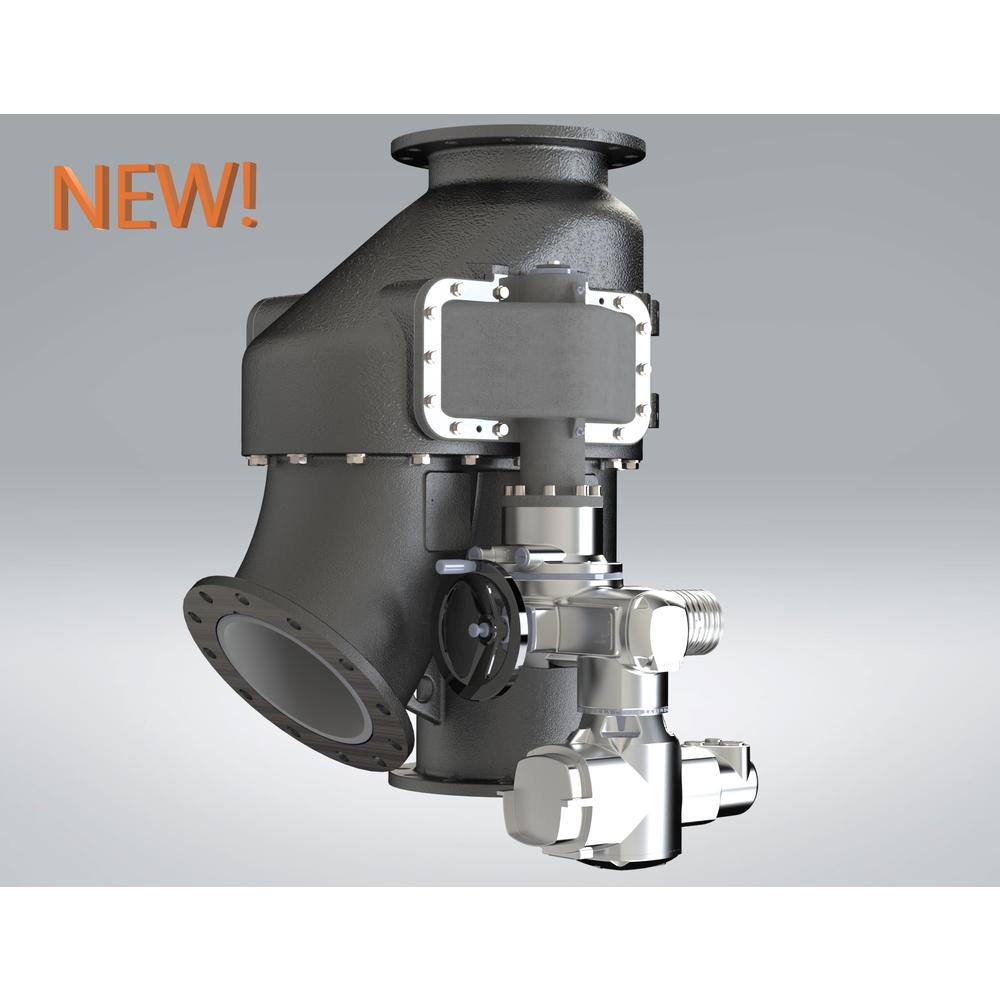

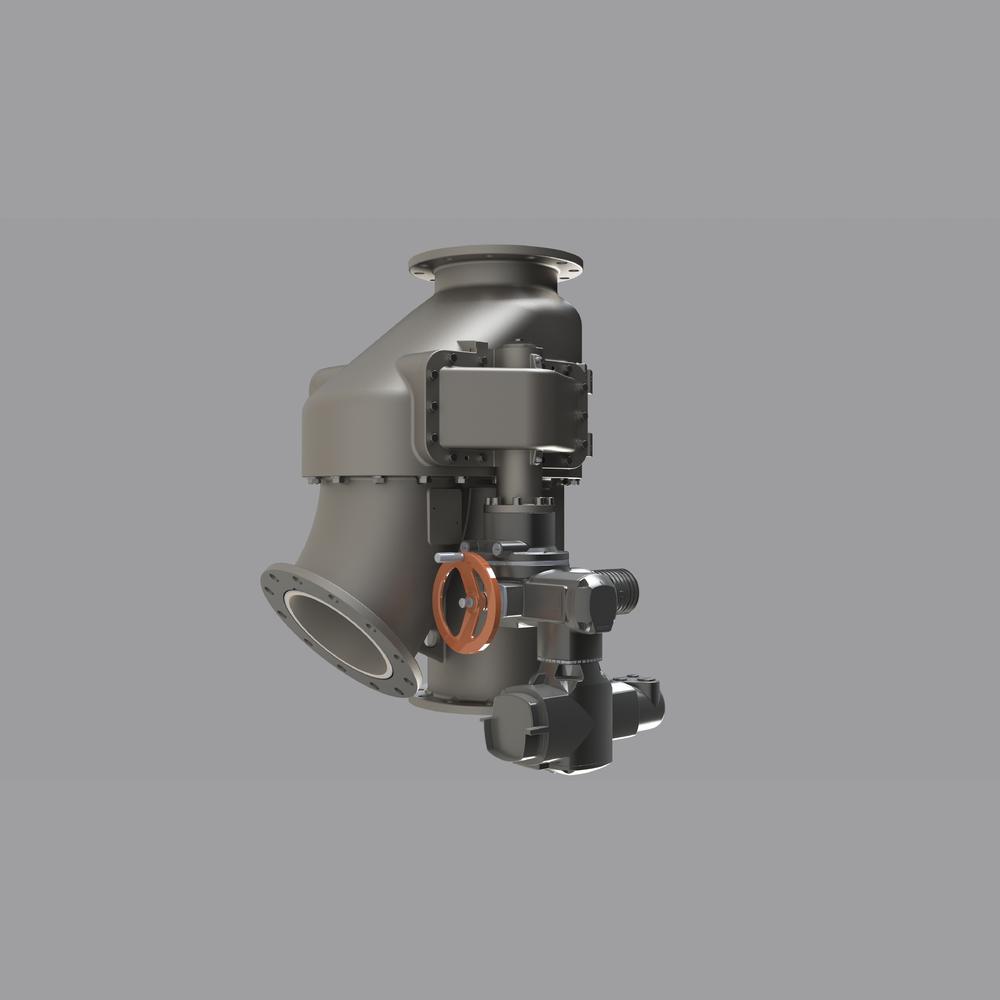

Split Modular Valve (SMV) with Direct Drive Motor
- Built-in limit switches and starter
- Quick and easy integration - lower labour costs.
- No limit switch exposure to corrosive environments
- Manual actuation (via hand-wheel) in the event of a power outage
Available Sizes & Options
Standard stocked sizes:
4” 5” 6”, 8”, 10”, 12”, 14”
Additional sizes:
16”, 18”, 24"
Custom builds:
Up to 24”
Optional safety guarding is available.
4” 5” 6”, 8”, 10”, 12”, 14”
Additional sizes:
16”, 18”, 24"
Custom builds:
Up to 24”
Optional safety guarding is available.
Outlet angles:
30-degree and 45-degree configurations
Actuation options:
30-degree and 45-degree configurations
Actuation options:
- Electric gear motor

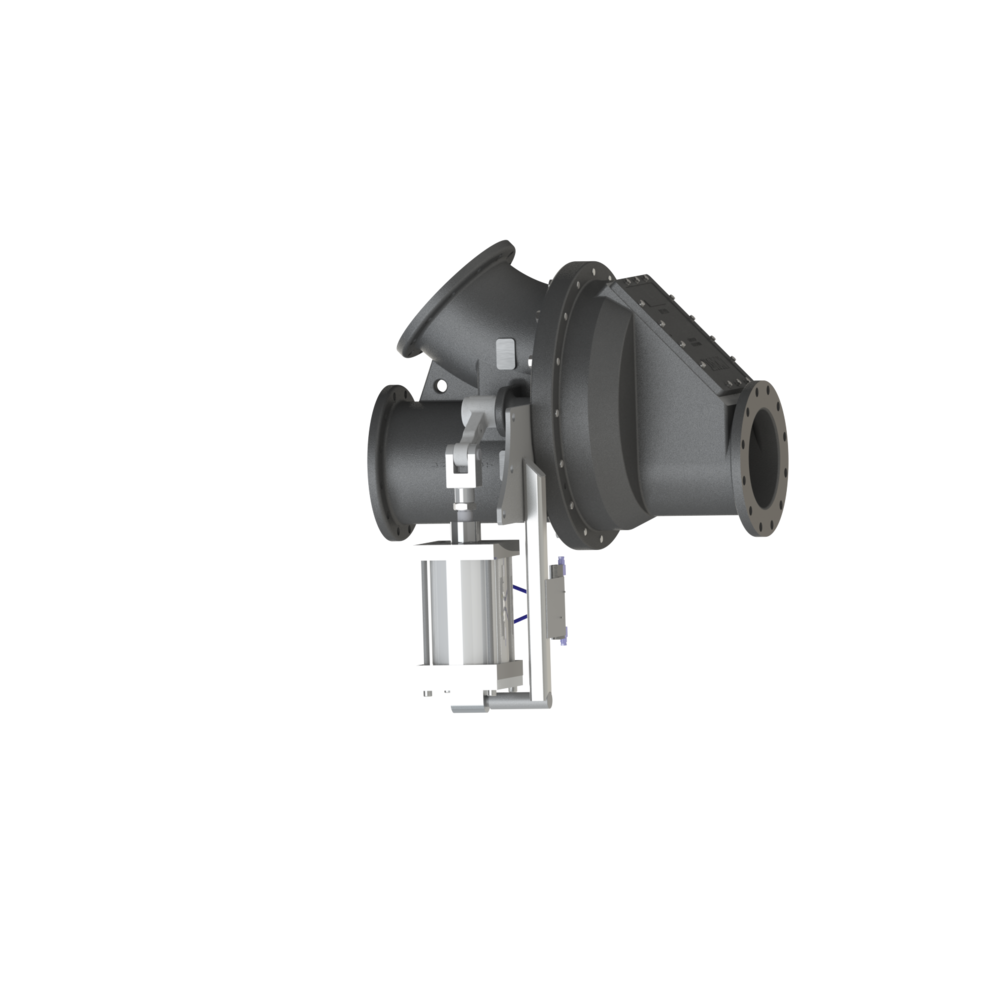

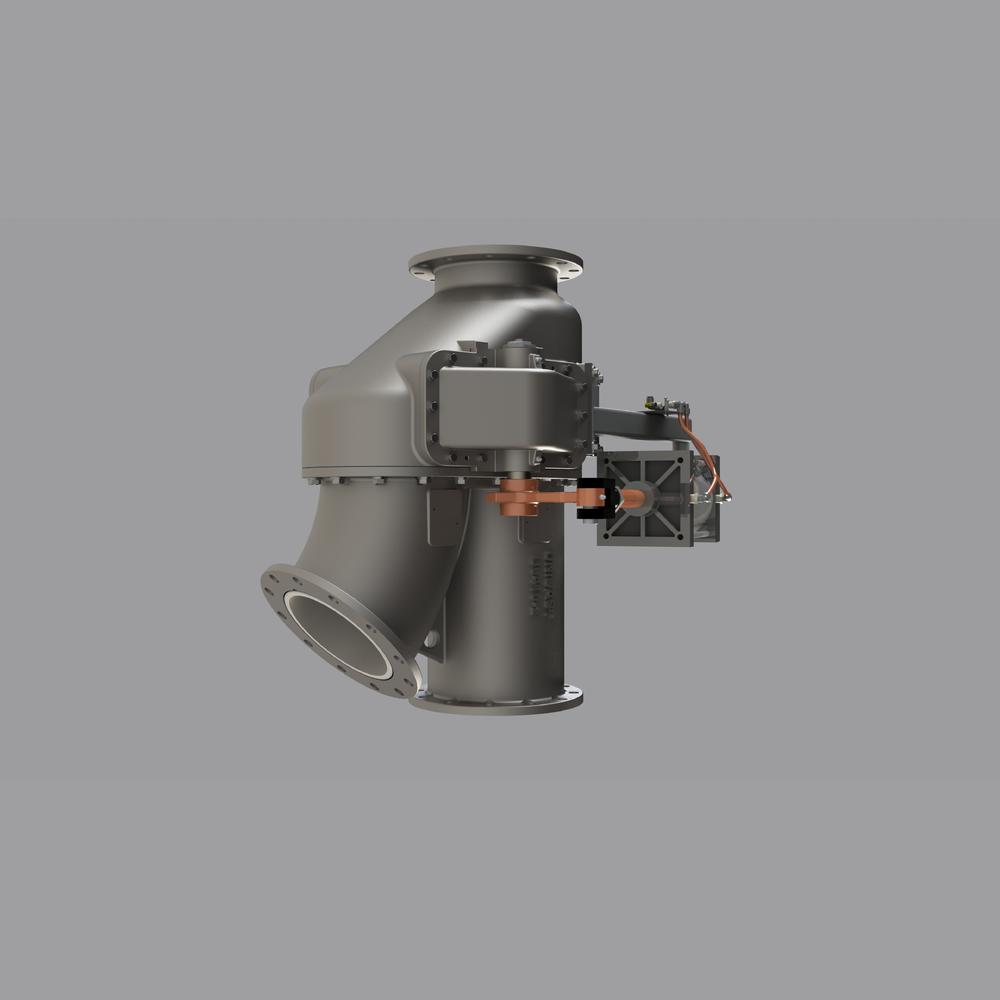

- Pneumatic actuator
- Manual handwheel actuator
Operational Boundaries
Recommended for:
- Dry abrasive bulk materials
- Pneumatic conveying systems
- Gravity-fed routing systems
- Cement, fly ash and dry abrasive powders
- Coal fines and dry mineral concentrates
Not recommended for:
- High-pressure slurry service
- Continuous simultaneous bidirectional flow
- Severe chemical corrosion environments
- Extreme impact loads exceeding ceramic tolerance
Failure Diagnostics
Inspect abrasion-resistant diverter valves when:
- Seal leakage develops
- Gate movement resistance changes
- Particulate bypass is observed
- Access panel inspection shows liner wear progression
| Comparison Point |
|---|
| Comparison Point |
|---|
| Comparison Point | Split Modular Valve (SMV) | Classic Diverter Valve |
|---|---|---|
| Structural clearance | Designed for tighter spaces and retrofit applications where clearance is limited. | Suited for standard layouts with adequate installation space. |
| Orientation flexibility | Modular design allows easier left/right orientation changes. | Typically configured for fixed routing requirements. |
| Installation approach | Useful where access, handling, or space constraints are a major consideration. | Useful for standard installations with established routing. |
| Best-fit applications |
Engineering Comparison
Ceramic-Lined vs AR Steel Diverter Valves
| Factor | Ceramic Diverter Valves | AR Steel Valves |
|---|---|---|
| Replacement frequency | Reduced | Increased |
| Weight | Moderate | Heavy |
In cement and mining environments, ceramic-lined diverter valves typically outperform steel-based alternatives in total lifecycle cost.
Ceramic-Lined vs Rubber-Lined Diverter Valves
| Condition | Ceramic-Lined | Rubber-Lined |
|---|---|---|
| Dry abrasive material | Excellent | Moderate |
| Impact-heavy flow | Moderate | Good |
| Temperature stability | High | Limited |
| Lifecycle cost in abrasive cement | Lower | Higher |
Rubber-lined diverter valves may perform well in impact-dominant scenarios but degrade faster under dry abrasive erosion.
Split Modular Valve vs Classic Diverter Valve
| Scenario | Split Modular Valve (SMV) | Classic Diverter Valve |
|---|---|---|
| Structural clearance | Designed for tighter spaces and retrofit applications where clearance is limited. | Suited for standard layouts with adequate installation space. |
| Orientation flexibility | Modular design allows easier left/right orientation changes. | Typically configured for fixed routing requirements. |
| Installation approach | Useful where access, handling, or space constraints are a major consideration. | Useful for standard installations with established routing. |
| Best-fit applications |
Tight clearances, retrofit projects, and applications needing configuration flexibility. | Standard routing layouts, fixed routing applications, and conventional installations. |
Industry-Specific Performance
Technical & Decision FAQs
- When should I specify a ceramic-lined diverter valve instead of a steel valve?
- If your application involves continuous dry abrasive flow such as cement powder, coal fines, fly ash or metal oxides (powder), steel-bodied diverter valves typically erode rapidly at inlet and throat transitions. Ceramic-lined diverter valves are specified when abrasion-driven wear is the dominant failure mode.
Unicast ceramic diverter valves use 3/4-inch cast ceramic liners in high-wear zones to significantly reduce erosion and extend maintenance intervals in abrasive bulk material systems. - What typically fails first in standard diverter valves?
- In abrasive bulk material handling systems, failure usually begins at:
- Gate-seat sealing surfaces
- Discharge throat transitions
- How long do ceramic diverter valves last in cement or mining plants?
- Service life depends on material abrasiveness, velocity, and duty cycle. In cement and mining applications, ceramic-lined diverter valves typically outlast steel or rubber-lined alternatives due to superior resistance to dry particulate erosion.
Unicast diverter valves are backed by a 25-year warranty on valve bodies, reflecting confidence in long-term abrasive performance. - How much downtime does diverter valve maintenance require?
- Traditional diverter valves can have limited maintenance access depending on installation layout and structural clearance. In many plants, servicing wear components requires partial disassembly or difficult access conditions, which can extend maintenance time and increase shutdown exposure. Unicast diverter valves are engineered for inline maintenance access, allowing typical service completion in approximately 1-3 hours without structural removal.
This is particularly critical in elevated installations where maintenance access risk is high. - How do I choose between a split modular valve and a classic diverter valve?
- Split modular valves are recommended when:
- Structural clearance is limited
- Frequent right-left orientation changes are required
- Access constraints increase service difficulty
Unicast offers both configurations to match installation constraints and maintenance strategy. - Are diverter valves suitable for pneumatic conveying systems?
- Yes, diverter valves are commonly used in pneumatic conveying systems for dry bulk material routing. Proper selection depends on material abrasiveness, velocity, and pressure. Application review is recommended to confirm compatibility.
Unicast diverter valves are engineered specifically for abrasive bulk material handling in gravity-fed and pneumatic systems. - When should a ceramic diverter valve NOT be used?
- Ceramic-lined diverter valves may not be appropriate in:
- High-pressure slurry service
- Extremely impact-dominant conditions exceeding ceramic tolerance
- Highly corrosive chemical-only environments
Designed for Abrasive System Reliability
Unicast ceramic diverter valves are engineered specifically for dry bulk material systems where predictable wear life, seal integrity, and controlled maintenance access are required. Configuration and actuation options are selected based on material abrasiveness, flow velocity, and installation constraints.
